Description
Description

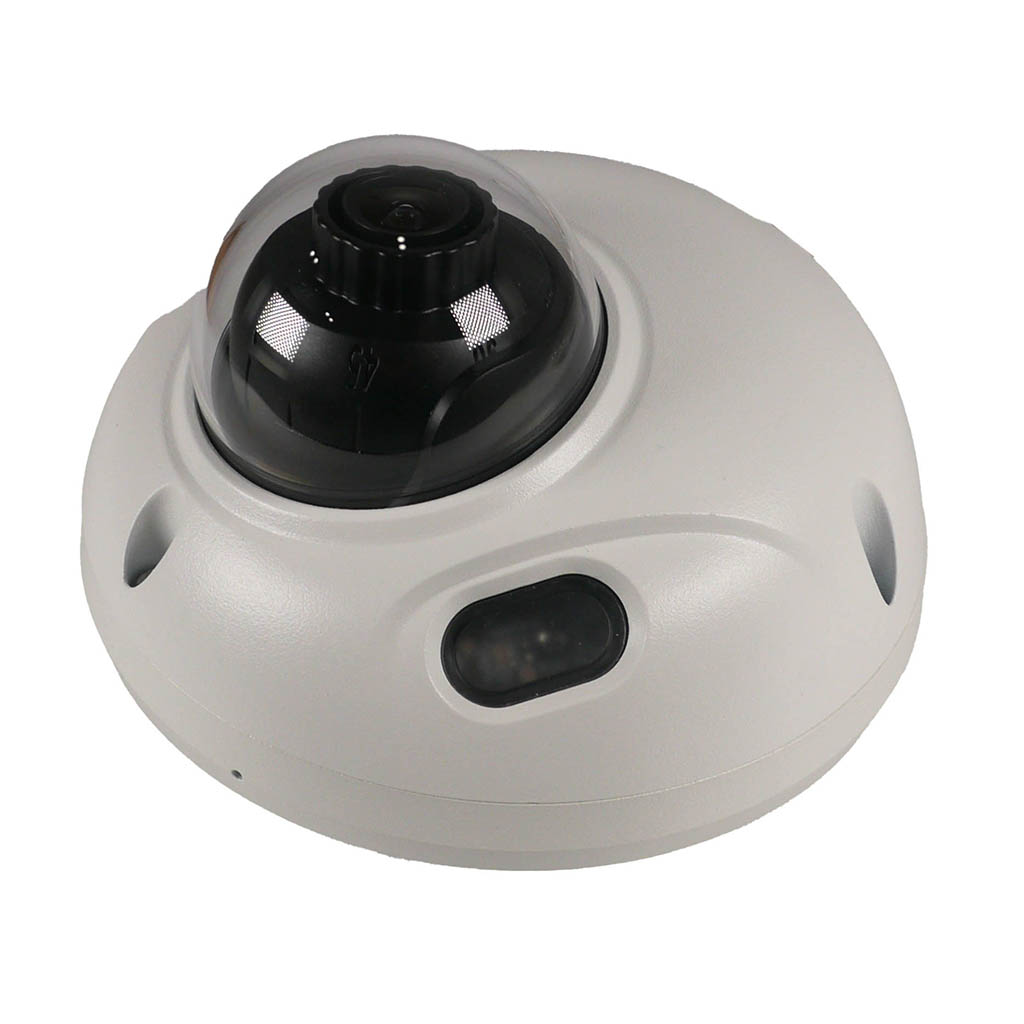

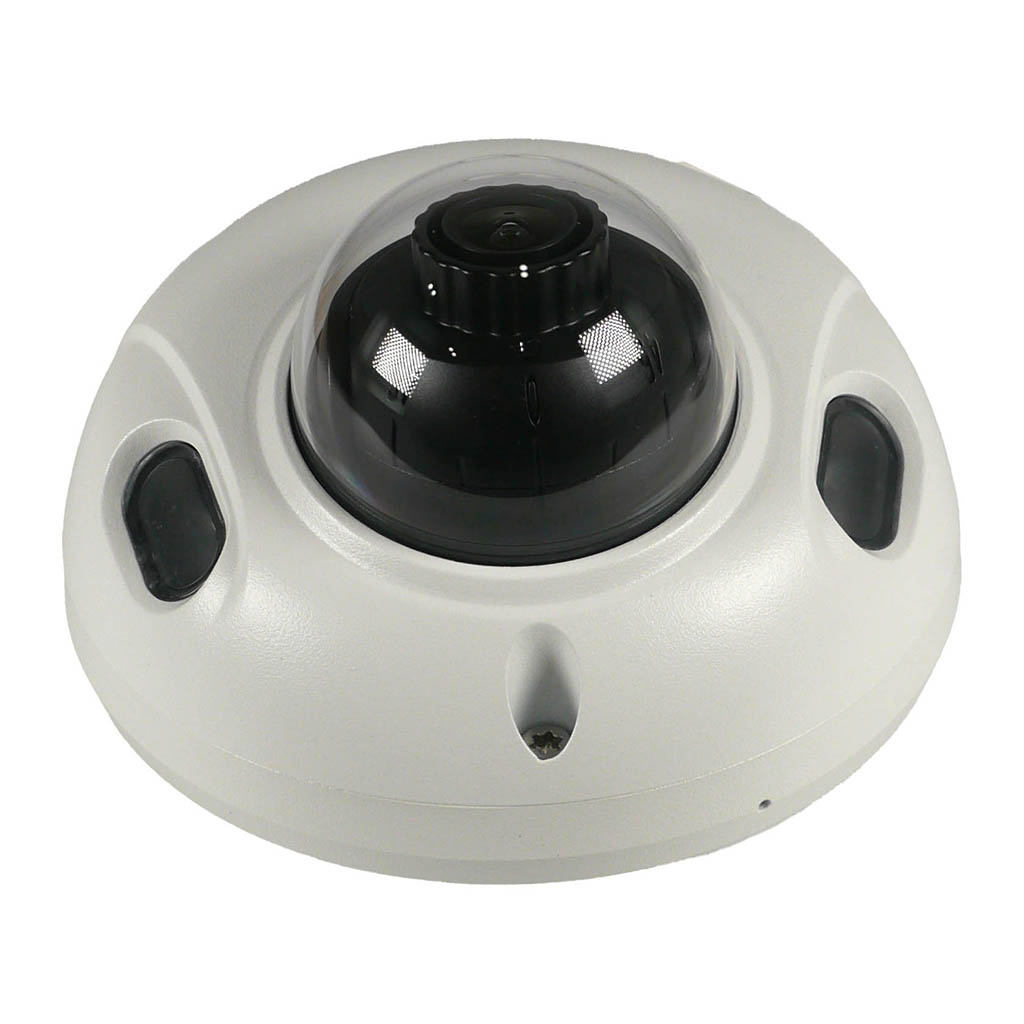

The IPVD-EL4MIR28A is our latest vandal dome for our Elite series of products. This 4-megapixel camera records @30FPS and uses H.265 encoding to pull a better quality image while using a lower bit rate, saving you recording space while not impacting image quality.
The IVS features of this camera include tripwire and intrusion detection and when paired with the AI on this camera, it will be able to classify between humans and vehicles that trigger the IVS rules. The AI also allows this camera to use SMD or smart motion detection which is an AI-enhanced version of motion detection, providing more accurate alerts.
The IPVD-EL4MIR28A uses a 2.8mm fixed lens for a wide angle view and with its two IRs it has an illumination distance of 98ft. This camera also has WDR, 3D NR, HLC & BLC to get a better quality image in varying situations.
With its IP67 rating, this camera is protected from the elements and is a great choice for an outdoor camera as well as indoors. The IPVD-EL4MIR28A has a built-in microphone for easy audio capture and using the mic it has an audio detection feature to alert you when the camera picks up noise. A 256GB SD card can be housed in the camera for internal storage and potential standalone use, and when programmed, if the SD card is full or if the card is not being detected by the IPVD-EL4MIR28A an alert will be sent out.
The IPVD-EL4MIR28A uses standard POE or 12V DC for power and has an IK10 protection rating.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Features
Features |
· 4 MP 1/2.9" CMOS image sensor, excellent low luminance performance and high definition of images. · Outputs max. 4 MP (2688 × 1520) @25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate. · Built-in IR LED, max. IR distance: 30 m. · ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments. · Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. · Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human). · Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. · Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic. · 12 VDC/PoE power supply facilitates installation. · IP67, IK10 protection. · SMD 4.0, AI SSA. |
Lens | 2.8mm Fixed Lens |
Megapixel | 4MP |
Image Resolutions | 4M (2688 × 1520), 3.6M (2560 × 1440), 3M (2048×1536), 3M (2304×1296), 1080p (1920 × 1080), 1.3M(1280 × 960), 720p (1280 × 720), D1 (704 × 576/704×480), CIF (352 × 288/352 × 240), VGA (640 × 480) |
Sensor Size | 1/2.9 CMOS |
IR Distance | 98 ft |
Weather Protection | IP67 |
Impact Protection | IK10 |
Voltage | 12V DC/POE |
Temp Range | –40 °F to 140 °F |
Dimensions | 2.55 by 4.37 inches |
Weight | 1.17 lb |
Audio | Built In Mic |
SD Card Compatible | Micro SD Card ( up to 256Gb can be installed) |
Perimeter Protection | Yes |
Object Detection | No |
Face Detection | No |
Face Recognition | No |
Smart Motion Detection | Yes |
LPR | No |
Downloads
Document Downloads
Product Specifications | Detailed Feature List and Product Specifications | |
Product Manual | Original Product Manuals |
