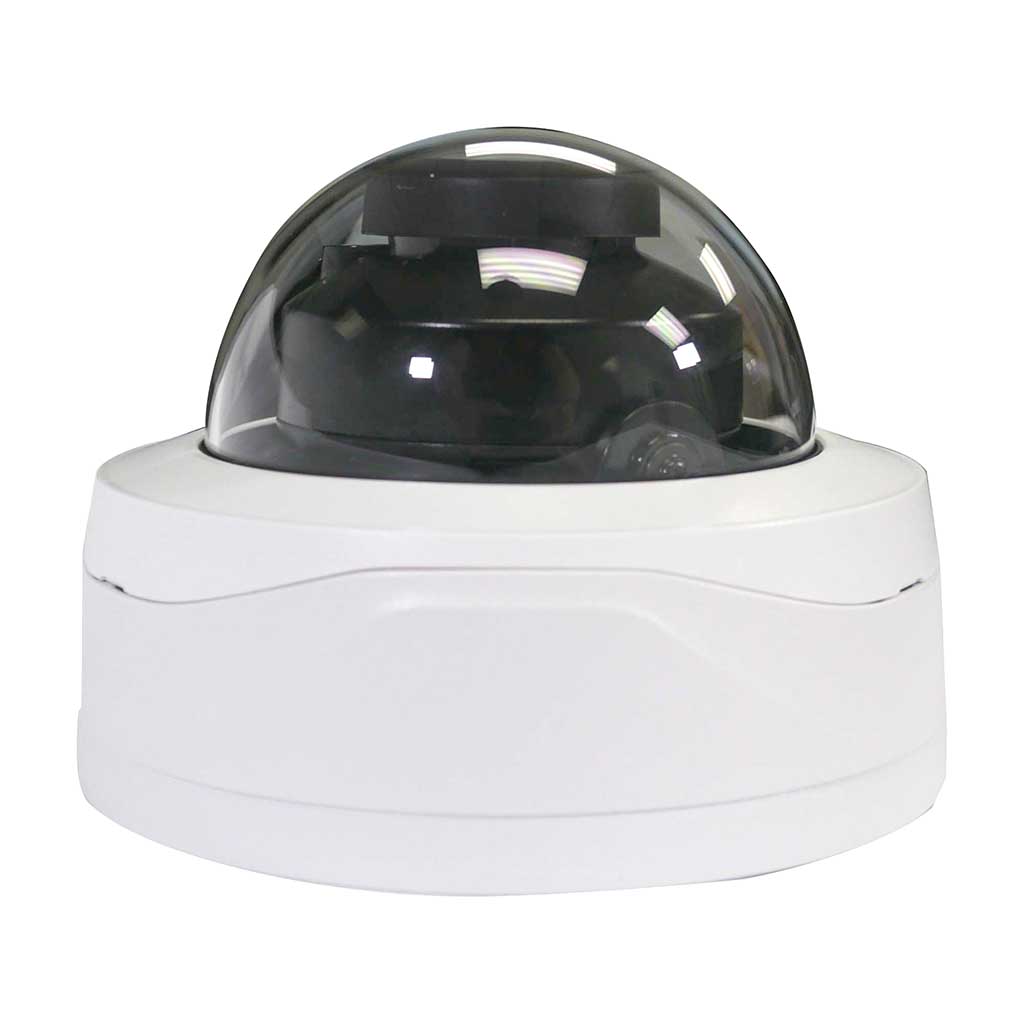

Introducing one of our newest additions to the Elite Family is our 4MP IP Vandal Dome. Using a 4MP resolution combined with a ⅓” CMOS imaging sensor allows this camera to capture cutting edge video at a maximum output of 4MP (2688 × 1520)@20 fps or (2560 * 1440) @ 25/30 FPS. using built-in IR LEDs the cameras’ housing provides visual enhancement settings making viewing up to around 130ft in total darkness possible in the event of local lighting. This camera is encoded with technology to use the ambient lighting of surrounding objects to provide a Starlight color display even at night, and observing at over 260ft during the day.
Performance in the harshest environments is a breeze, with its IP67 Vandal Proof Rating for durability combined with its IK10 enclosure can stand a punch more than 5 times from a hammer or even falling from a distance of over 120ft you can rest assured that this camera will sustain the toughest encounters thrown in its path.
With its updated H265+ advanced algorithm of auto stream control according to the environment, the smart encoding technology realizes the higher efficiency than (H.265 & H264 ) providing high-quality video, and reducing the cost of storage and transmission. Five times digital zoom makes focusing in on a specific area that much easier and with general IVS analytics like intrusion detection and tripwire will keep you notified in the event of someone tampering with your device using Abnormality detection capturing things like unnecessary Motion, video tampering or situations like no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection.

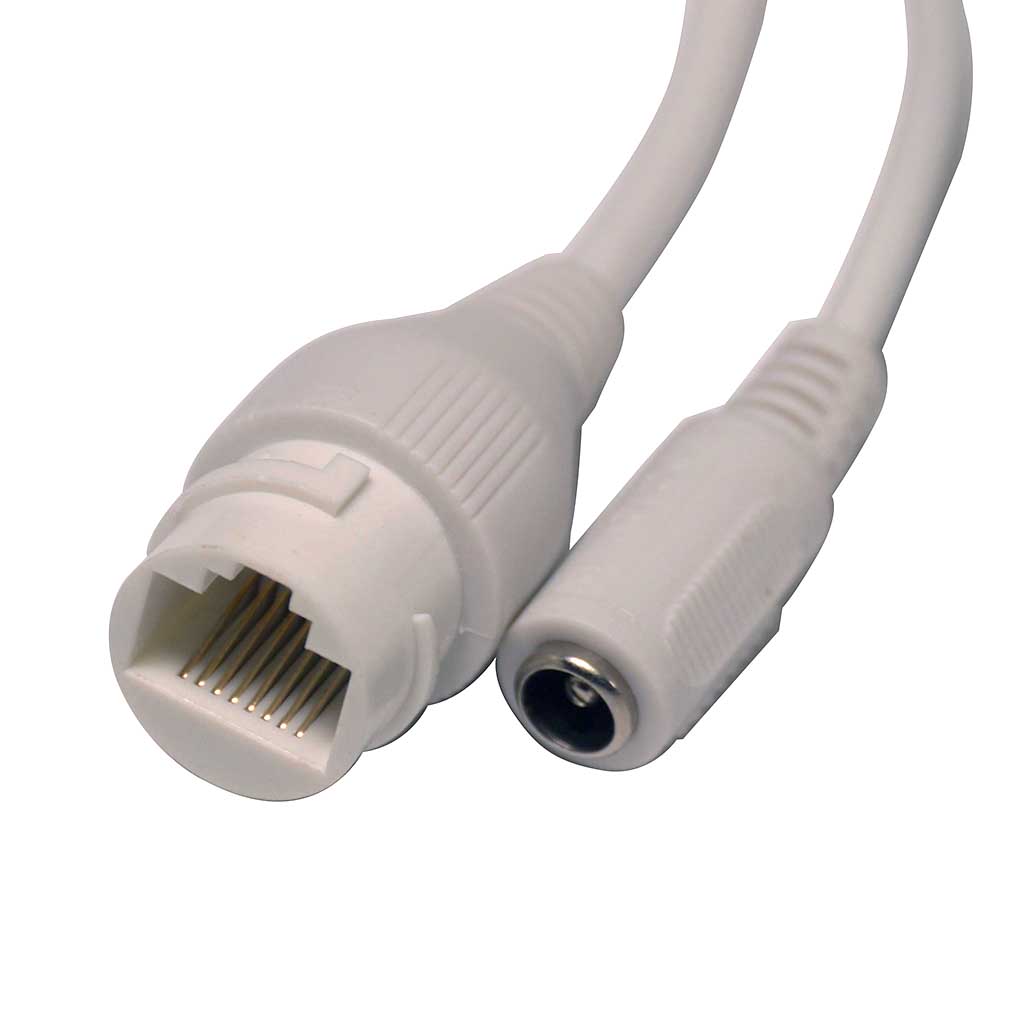

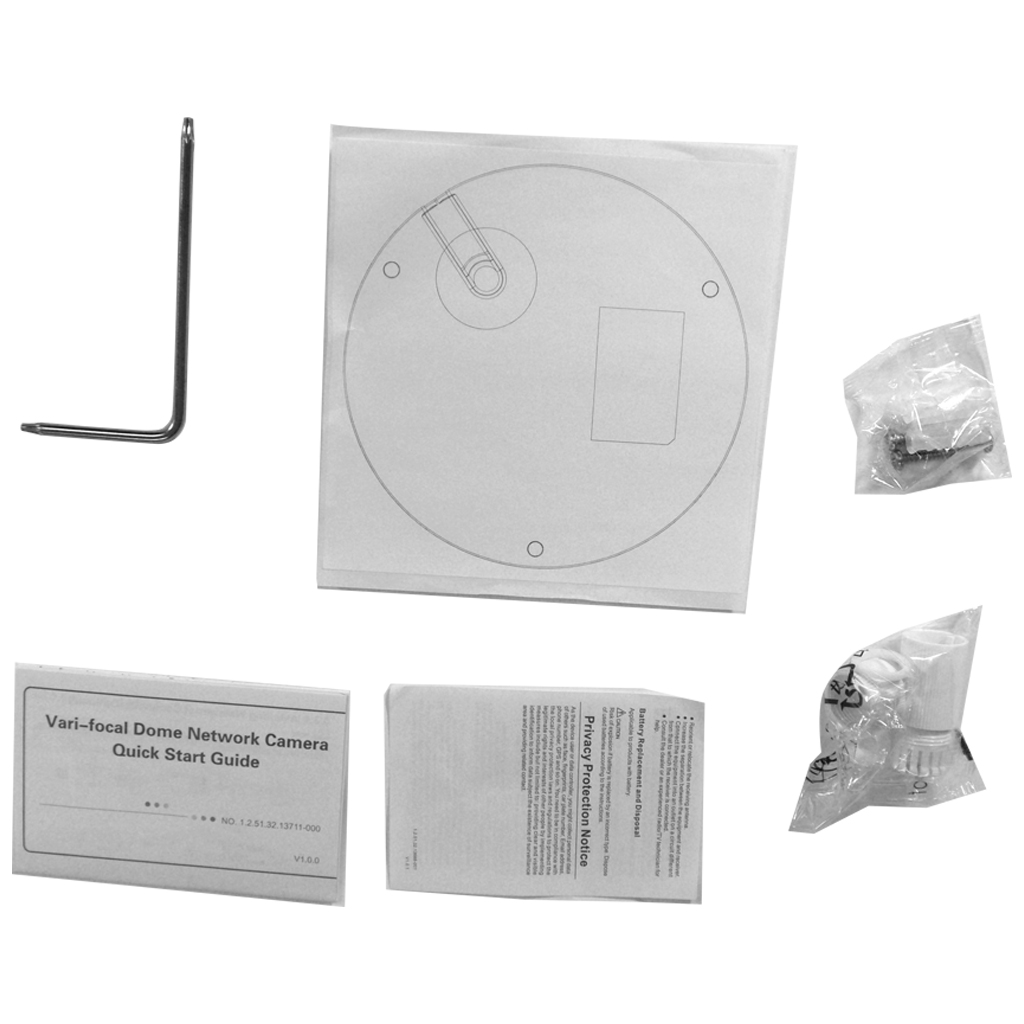

This camera provides the connections to either power locally using standard 12v dc Or POE (Power Over Ethernet) as well as the ability to provide audio In /Out using 1 (RCA port) located on the pig tail, combine that with its SD capability of up to 256 GB and the three mounting accessories we provide this camera is ideal for any situation.
If you are seeking security camera assistance, looking to add, upgrade or even replace an existing camera look no further. We offer full technical support, free of charge for the lifetime of all our products.
|Features||H.265 & H.264 Video Compressions, True WDR, IK10 Vandal Rating|
|Lens||2.7-13.5mm Motorized Zoom Lens|
|Image Resolutions||(2688x1520)/(2560×1440)/(2304x1296)/(1920x1080)/(1280×1024)/(1280× 960)/(1280×720)|
|Sensor Size||1/3 inch 4MP progressive CMOS|
|IR Distance||130 feet|
|Temp Range||-22°F ~ +140°F|
|Dimensions||4.80in x 4.80in x 3.50in|
IPVD-ELES4IRZA Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Configuration Tool Downloads: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
