ELITE Series 16 Channel 1.5U Penta-Brid

(1 customer review)
SKU : PENDVR-EL16C4K-AI3

$642.20

In stock

Storage Options – Optional

The PENDVR-EL16C4K-AI3 is a 16 Ch DVR from our Elite series of surveillance equipment. This pentabrid can support five different types of cameras including CVBS (analog) HD-CVI, HD-TVI and AHD through the built in BNC connectors. IP cameras are the fifth type of cameras supported and they will need a stand alone POE switch. This recorder can support 16 BNC connected cameras in addition to 16 IP cameras.

This unit has 4 SATA ports accepting up to 10TB drives in each hard drive bay. You can record continuously or based on motion detection. You can even schedule it to do both on a schedule. It also has SMD Plus(Smart Motion Detection), the PENDVR-EL16M4K-AI3 utilizes intelligent algorithm-based motion detection software to filter out unwanted information leaving you with far fewer false alerts.

This DVR uses IVS (Intelligent Video System) which includes tripwire analytics, missing or abandoned objects, and facial detection to name just a few. You can even hook up external accessories such as a siren, strobe light or alarm function with the built in alarm inputs and outputs.

Easy-to-Navigate User Interface

Manage settings, view footage, and control your system effortlessly through an intuitive interface. Designed for users of all experience levels, no technical skills required.

H.265+ Video Compression

Reduce bandwidth and storage needs by up to 50% compared to H.264 without sacrificing video quality. Enjoy smoother streaming and more days of recording on the same hard drive.

Easy Plug-and-Play Installation

Quick and simple setup with plug-and-play coax connections—no complicated configurations or network knowledge required.

Remote Viewing via Mobile App

Access live and recorded footage from anywhere using a secure mobile app. Stay connected with real-time alerts, playback options, and remote management of your entire system.

Motion-Based Recording / Smart Search

Record only when motion is detected to save storage and simplify review. Use Smart Search tools to quickly locate events based on specific zones, timelines, or motion triggers.

Audio Recording with Supported Cameras

Capture both video and audio when using supported cameras—ideal for validating incidents, conversations, or ambient sound around the camera.

Hybrid Support (TVI, CVI, AHD, Analog, IP)

Easily integrate various camera types including TVI, CVI, AHD, Analog, and IP—offering broad compatibility for new or legacy systems.

Up to 4K Ultra HD Resolution

Capture ultra-sharp video with up to 4K resolution, providing detailed surveillance footage ideal for identifying faces, license plates, and other critical details.

Description

The PENDVR-EL16C4K-AI3 is a 16 Ch DVR from our Elite series of surveillance equipment. This pentabrid can support five different types of cameras including CVBS (analog) HD-CVI, HD-TVI and AHD through the built in BNC connectors. IP cameras are the fifth type of cameras supported and they will need a stand alone POE switch. This recorder can support 16 BNC connected cameras in addition to 16 IP cameras.

This unit has 4 SATA ports accepting up to 10TB drives in each hard drive bay. You can record continuously or based on motion detection. You can even schedule it to do both on a schedule. It also has SMD Plus(Smart Motion Detection), the PENDVR-EL16M4K-AI3 utilizes intelligent algorithm-based motion detection software to filter out unwanted information leaving you with far fewer false alerts.

This DVR uses IVS (Intelligent Video System) which includes tripwire analytics, missing or abandoned objects, and facial detection to name just a few. You can even hook up external accessories such as a siren, strobe light or alarm function with the built in alarm inputs and outputs.

Recorder
Number Of Cameras 16 BNC+16 IP
Number Of SATA Connections 4
Has Alarm Inputs / Outputs Yes

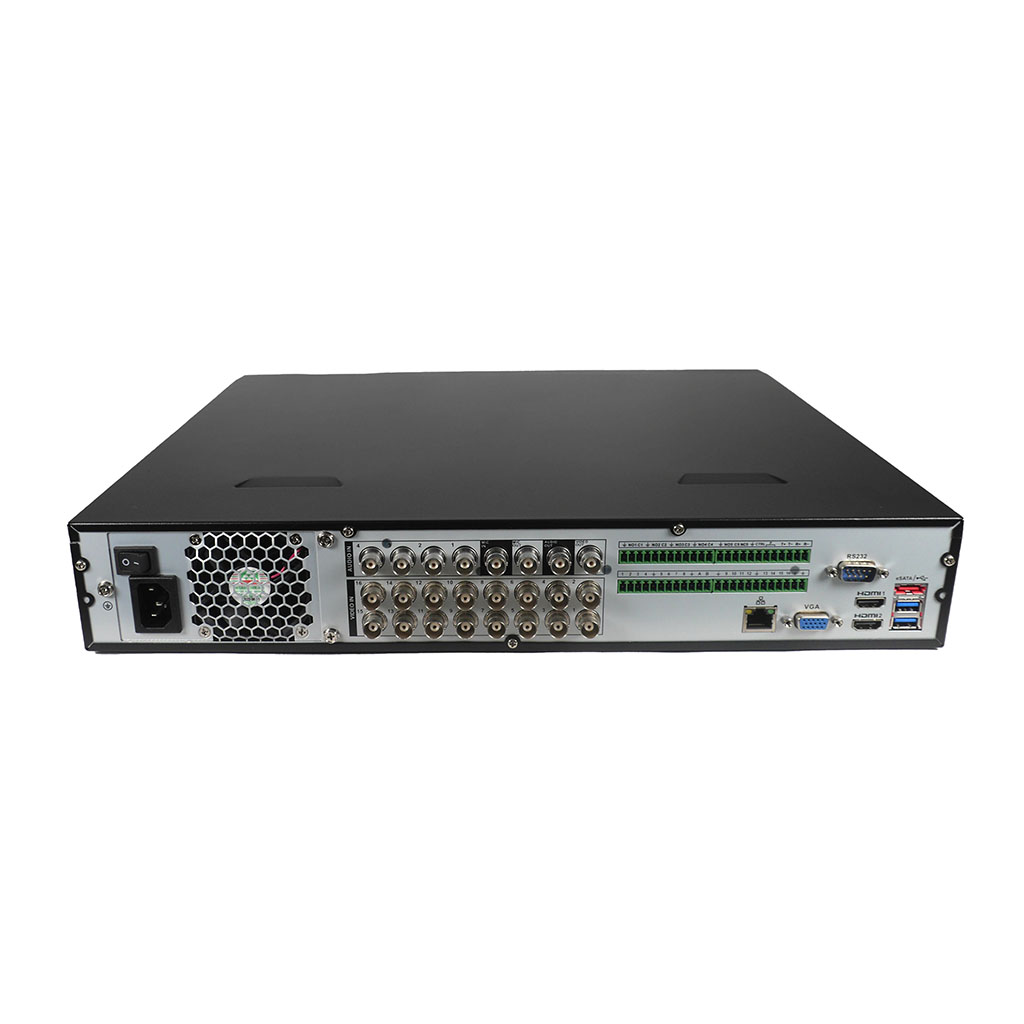

Video Output Types 2 HDMI, 1 VGA, 1 TV (BNC)
Video Output Resolutions: VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Size 1.5U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1
Max Bandwidth 128 Mbps
Display Screen Split When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
Compression of Video H.265+
Connection Apps ELITE Viewer Pro | DMSS | Smart PSS
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
LPR No

Additional information

Weight 18 lbs
Dimensions 22 × 22 × 10 in
Technology

AHD, Analog, HD-CVI, HD-TVI, Network IP

Compatibility

Elite Series

Product Line

Elite Series

Channels

16 Channel

Recorder Type

DVR

Max Resolution

8 Megapixel/4K
