ELITE Series 16 Channel 2U 4K DVR

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

SKU: PENDVR-EL164K-AI Categories: ,

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution

Some jobs just require a recorder that has all the features.  Do you need months of storage?  Do you have microphones ran to many different areas of your installation?  Do you need an alarm input for all of your cameras?  Then you need the PENDVR-EL164K-AI.

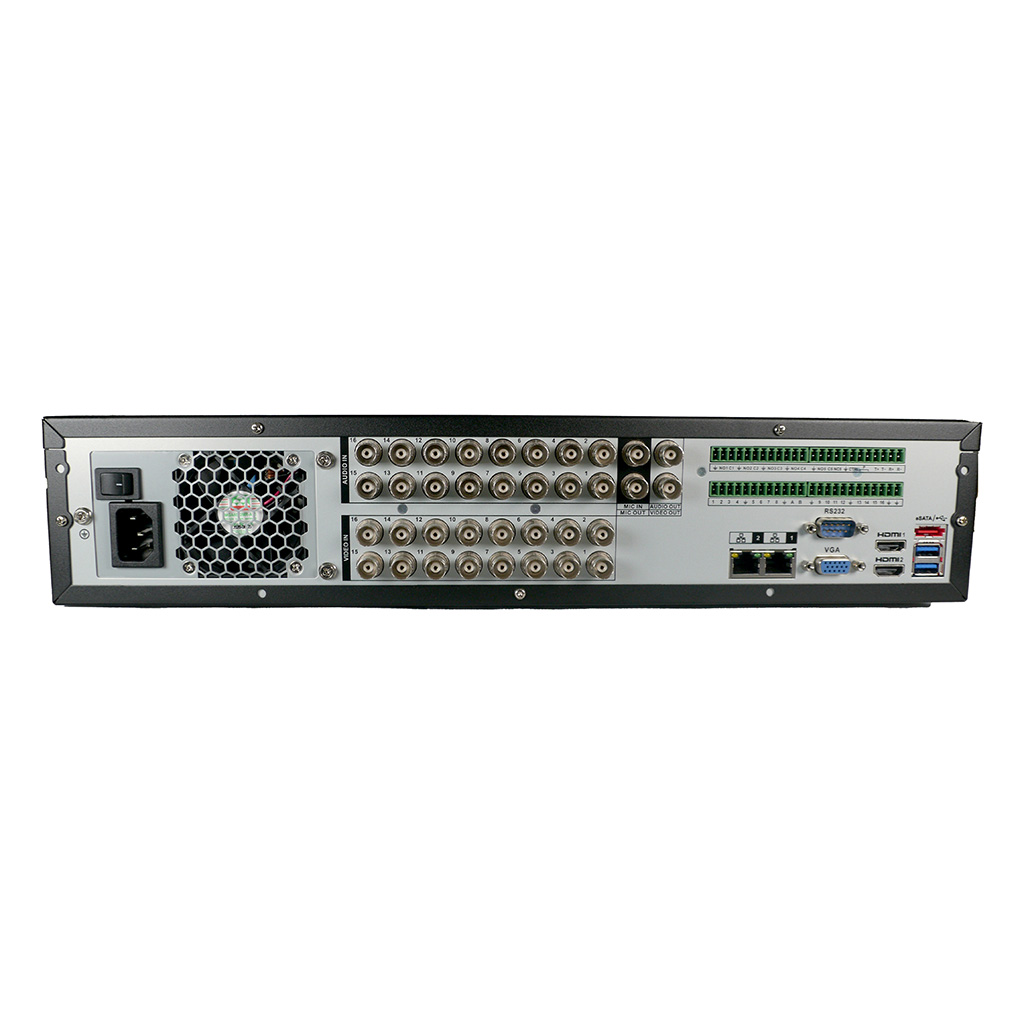

Our massive 2U 16 Channel Pentabrid (or 32 Channel Hybrid via IP in a 16+16 configuration) has room for up to 8 SATA HDs, features 16 BNC audio inputs, 16 alarm inputs with 6 relay outputs, BNC and RCA audio out, BNC video out to go with 2 HDMI and 1 VGA supporting Spot Video Out, dual Gigabit Ethernet, and POS integration making it a true connectivity king.

With support for 4K resolution over coax and up to 12MP IP cameras the PENDVR-EL164K-AI can provide crystal clear high resolution regardless of the type of camera and cable you have run today or are planning to run for new installations.  128 Mbps of total bandwidth gives a solid bandwidth budget for users who need to use the full potential of the 16 camera IP expansion mode.

For users less interested in IP expansion, the PENDVR-EL164K-AI also features our latest AI upgrades for the 16 channel dedicated coaxial inputs.  Enable Smart Motion Detection+ (SMD+) on all channels to replace traditional motion detection.  Instead of triggering motion on minute changes in video that generally require heavy masking to prevent from triggering constantly, SMD+ uses a deep-learning AI algorithm to only record and notify when detecting persons and vehicles on screen.  This can heavily reduce false positives and extend playback time against a traditional motion detection being constantly triggered by moving foliage and shadows.  Enable IVS rules like trip-wire and intrusion boxes in conjunction with SMD+ on 2 channels to get true Perimeter Detection.

The PENDVR-EL164K-AI also has 2 channel support for our latest Facial Detection features such as meta tagging and stranger mode, making it easier to search through your facial recognition records and providing live feedback on-screen.  Perimeter Detection and Facial Detection conflict with each other, you will have to choose one feature or the other.

For clients and users who need maximum connectivity, a wide flexibility of camera resolutions and styles from yesterday to today, or simply need massive amounts of storage can’t go wrong purchasing the PENDVR-EL164K-AI.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16
Number Of SATA Connections 8
Has Alarm Inputs / Outputs Yes
Video Output Types 2 HDMI & 1 VGA
Video Output Resolutions: HDMI 1 - 3840×2160, 1920×1080, 1280×1024, 1280×720 | HDMI2 & VGA - 1920×1080, 1280×1024, 1280×720
Size 2U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Max Bandwidth 128 Mbps
Display Screen Split BNC Only 1/4/8/9/16 | IP Extension Mode 1/4/8/9/16/25/36
Compression of Video H.265+
Connection Apps Smart PSS, ELITE Viewer Pro
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
