HD-CVI, HD-TVI & AHD 16 Channel Passive Video Balun

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

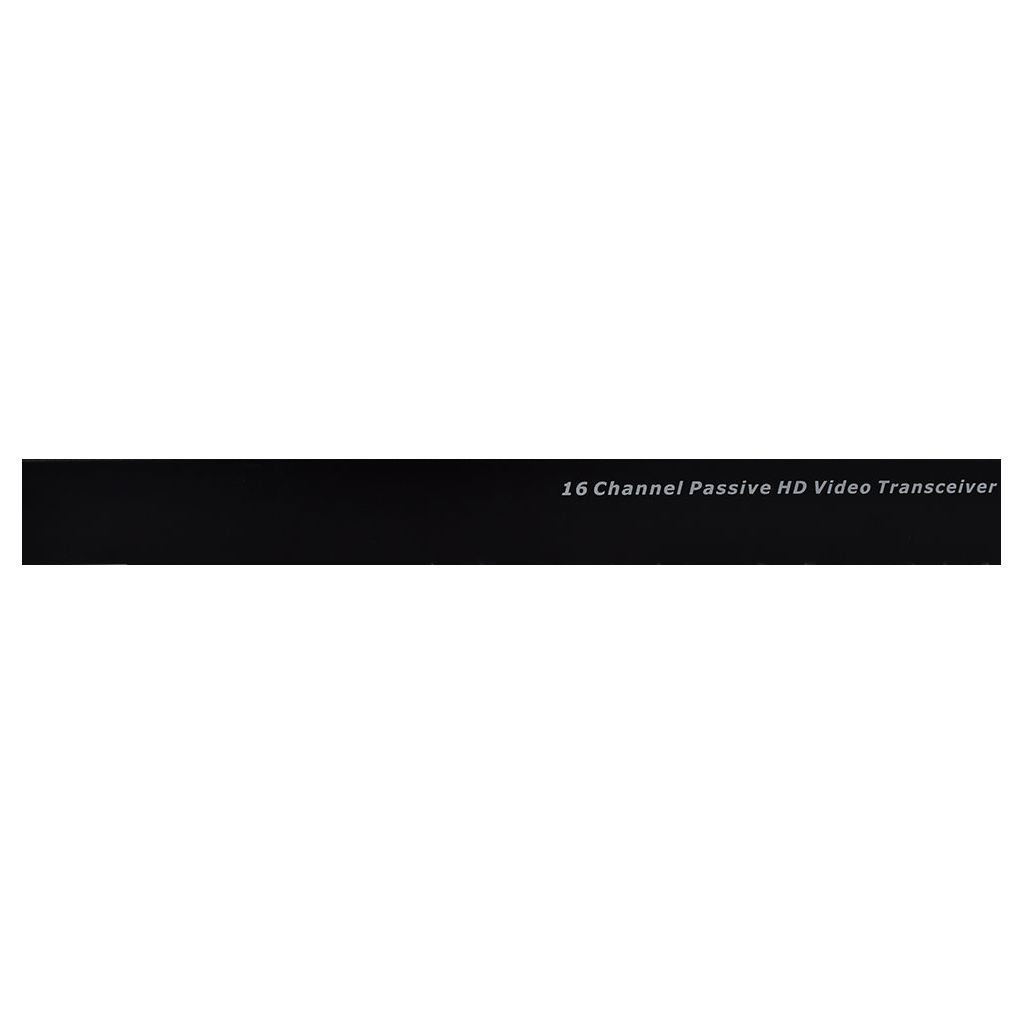

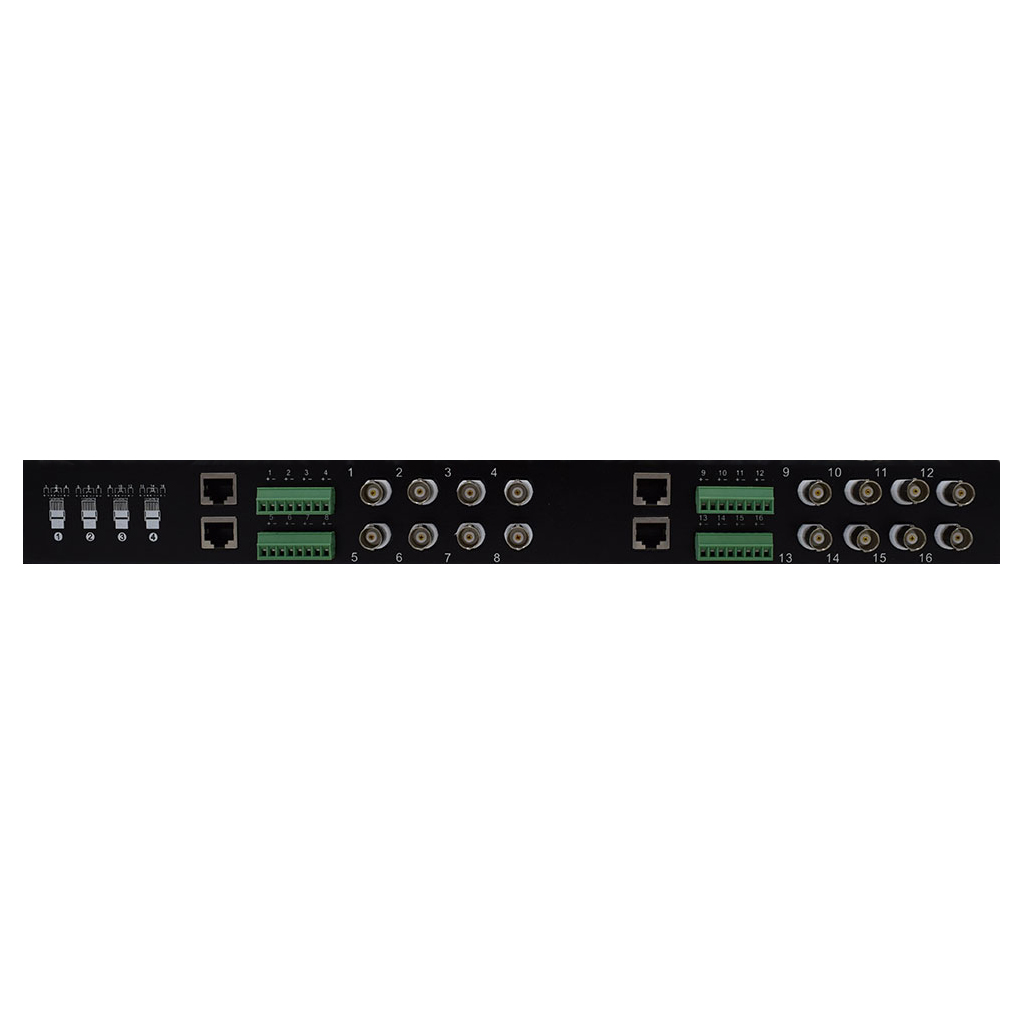

This a rack mountable 16 Channel Passive HD Video Transceiver has 16 x BNC video connections and 4 X RJ45 connections and you can choose to use the green screw in terminal blocks or RJ45 jacks to connect the pairs. This is compatible with HD-TVI, HD-CVI and AHD.

Transmission distances are as follows:
Color HD video transmission distance (passive to passive):
HD-CVI 720P : 400 meters / 1080P : 250 meters
HD-TVI 720P / 1080P : 250 meters
AHD 720P : 350 meters / 1080P : 200 meters

Color HD video transmission distance up to 600 meters (passive to active)

Passive, no need for power supply
Use with CAT 5/5E/6 UTP cable
Plug and play, simple installation
Super surge protection & interference rejection
Real-time transmission, no delay

With this device you can convert up to 16 cameras to a single CAT5/5E/6 using BNC connectors for up to 1200 feet. Add a second 16 channel HD balun and you can convert the video back to BNC. Perfect for when you want to run multiple cameras to nearby locations on a single cable. This is also a great way to plan for future changes because you will have network cable in place and you can remove the baluns and add HD 4K cameras down the road! ***Please note these are sold individually, NOT in pairs.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.
