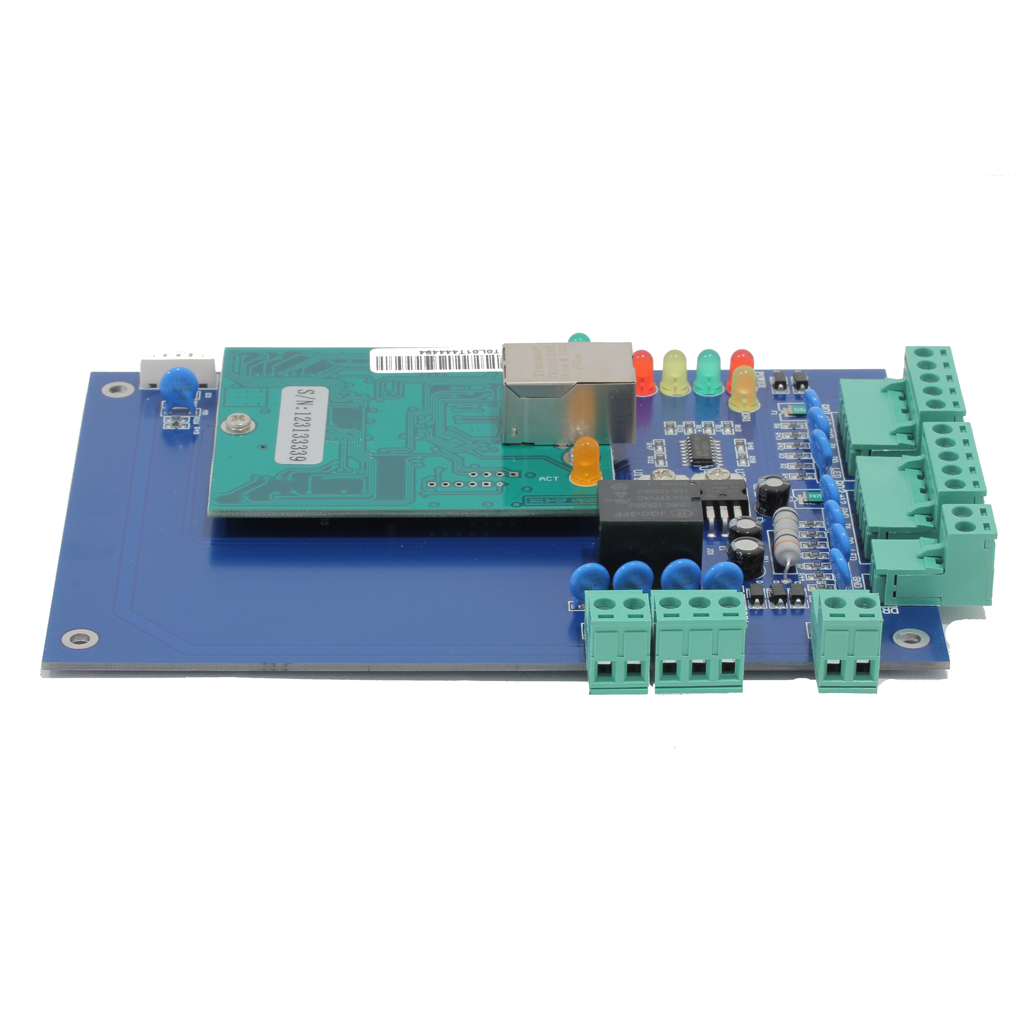

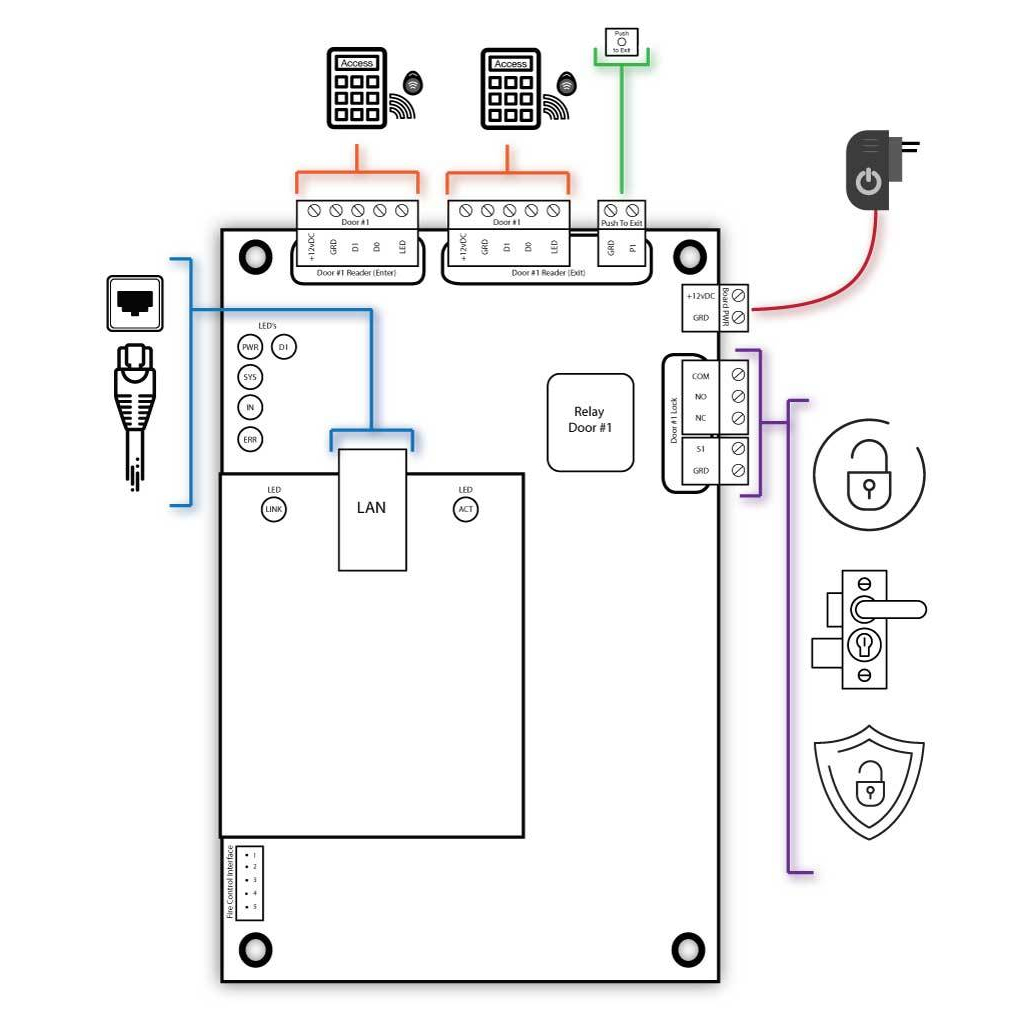

The ACP-DXEL1 is an Access Control Board for 1 Door. This 1 Door Access Control Board can handle up to 2 readers (one on the entrance side of the door and another on the exiting side of the same door.) You can also hook up one Exit Button and a door locking mechanism such as an Electronic Door Strike or Electromagnetic Lock as well as other devices such as an alarm, siren etc.
This is a very easy access control panel to work with. All you need to do is connect a Cat5 Ethernet cable from the RJ45 Port on the Control Board to your network and any PC on your network can access the board and all its functions using our Free DX Access Control Software.
The great thing about our DX Series of access control boards is that they can be expanded into multiple doors. Say for example you purchase this single door access control board and down the road you want to have access control on another door. All you need to do is by another 1 door access control board, connect that one to your network and the DX software will be able to see both doors. Same thing works if down the road you want to add 4 doors. Just purchase a 4-door access control board, connect that to your network and now the DX software will recognize and configure all 5 doors together.

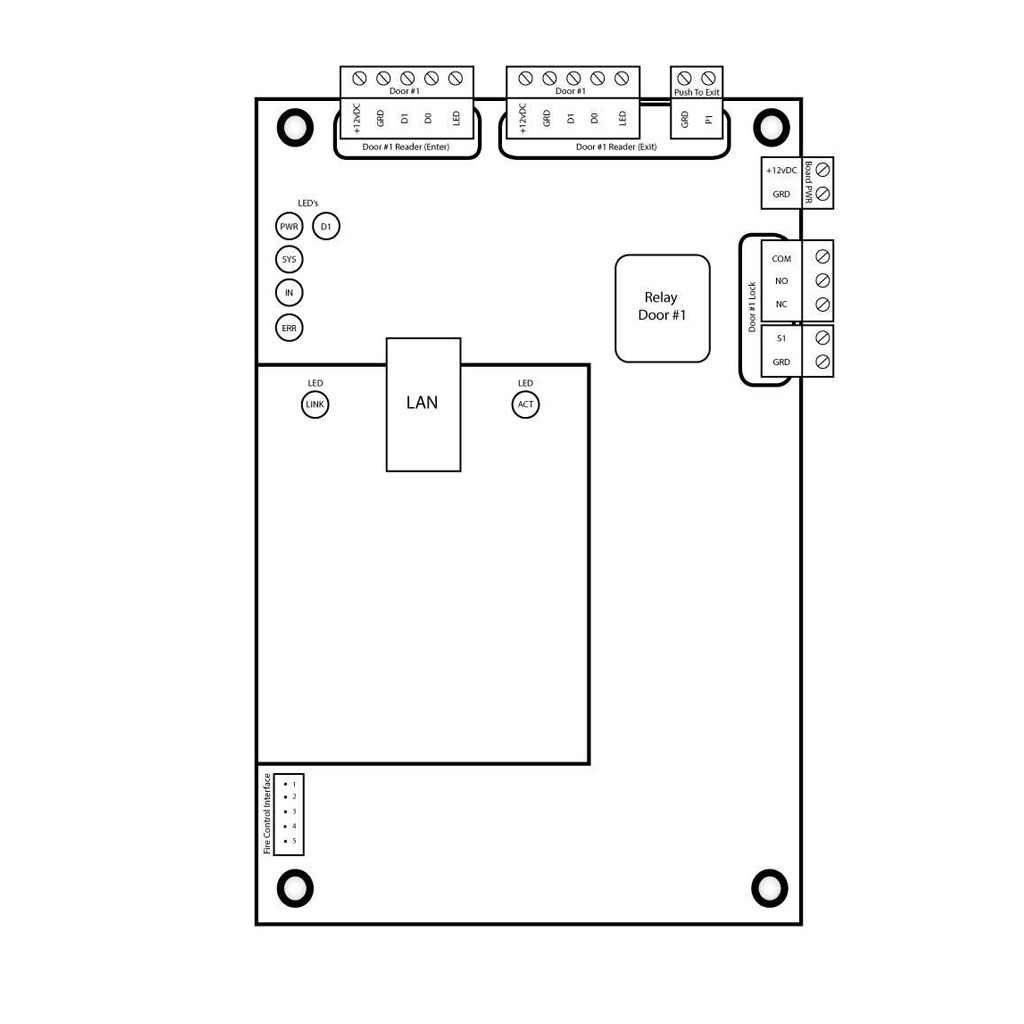

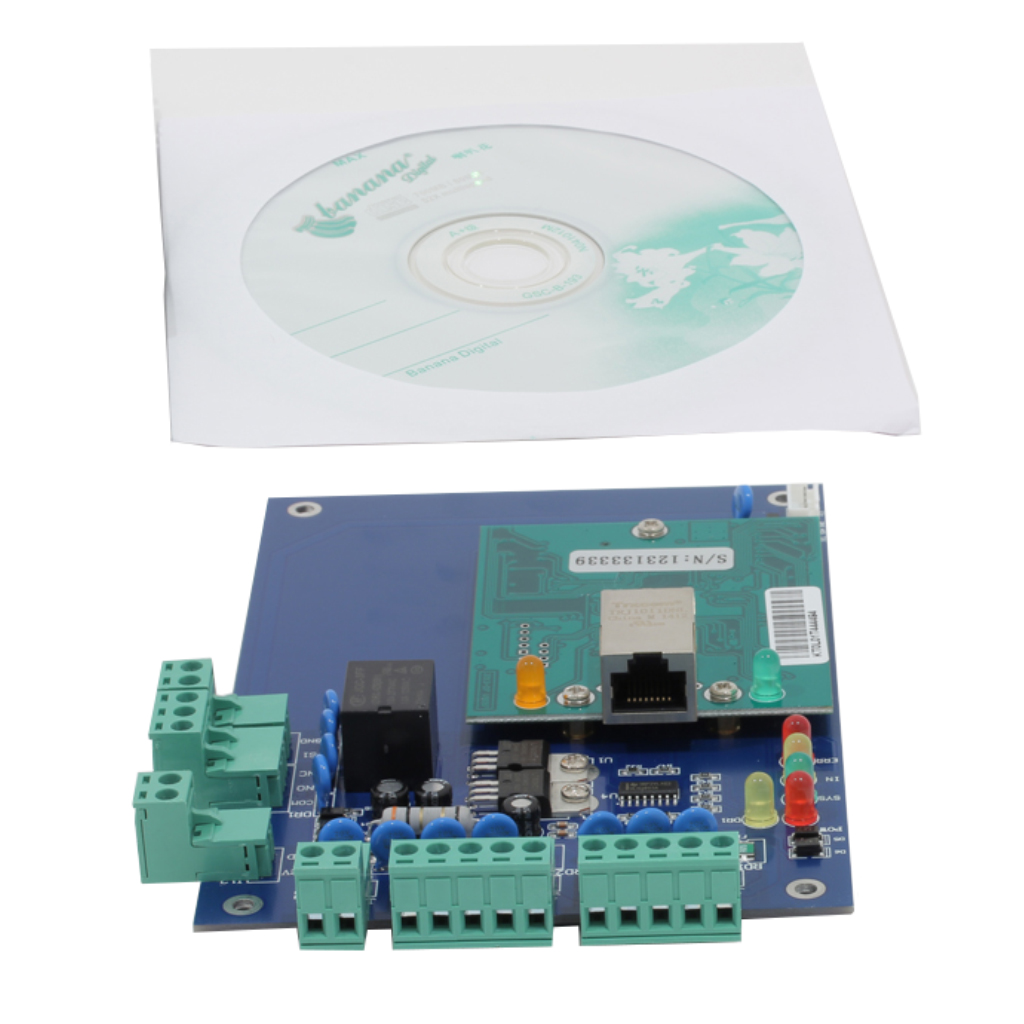

Included with this Single Door Access Control Panel is the Software CD which allows for complete control over your readers, lock, exit button, alarms and more.
You will need to power this access control board with a 12v DC power supply. If you wish to already have a power supply wired to this board inside of an access control power supply box then check out our 1 Door DX Series Access Control Package.
|Unit Size||160mm *106mm|
|Unit Packing Size||21×13.8×137.5px|
|Accessories||User Manual, warranty card|
|Conventional Function||off-line operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing ; alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.|
|Professional function||for professional users such as bank,cash house, telecom station, power supply station,prison and police station: interface locking; intimidation alarm; integrated fire control;anti-pass-back and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.|
|all-in-one-card management system||normal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; Online patrol management system and security alarm management system.|
|Communication||TCP/IP 10M/100M adaptive|
|English Software supportable database:||Access and SQL|
|Description||Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button|
|Power Supply||12VDC 4-7A|
|Power Consumption of Circuit Board||Less than 100mA|
|Input Format of Reader||Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)|
|Quantity of Readers||2pcs|
|Door opening time extending setting||1-600 seconds(adjustable)|
|Max qty of controller||No limit|
|Remark: N denotes qty of computer serial Port or qty of 485hub port, support 256pcs ports|
|Operation Temperature||minus 40°C-70°C|
|Operation Humidity||10-90 % RH , No Condensation|
|Qty of users||20,000 Users|
|Qty of Event Buffers(off-line)||100,000 event buffers|
|Power interruption protection measure||High Speed Memory, Records never lose|
|Max Distance from Reader to Controller||100m (suggestion distance 80m)|
|Max Distance between Controllers||RS232: Communication Distance less than 13m, suggestion distance is 3m or less|
|RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m|
|TCP/IP: Depends on net coverage area|
|Collocations||PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton|
|Alarm for long time door open, illegal break in, intimidate||Yes|
|Open and close door at long time||Yes|
|Open door in remote distance||Yes|
|Anti pass back and tail||Yes|
|Multi-card open door||Yes|
|Open long time at specified time||Yes|
|First card unlocking||Yes|
|Unlock based on internal and external validation||Yes|
|Keypad (card+password, supper password)|
|Product Specifications||Detailed Feature List and Product Specifications|
