2 Door DX Board Package with 12A Power and Maglocks OR Doorstrikes

(1 customer review)

$754.15 $678.74

Out of stock

CompareCompare

Join the waitlist to be emailed when this product becomes available

SKU: AC-DX2DHP-P Categories: ,
Description

Description

Description

Our new DX Access Control package takes the guesswork out of planning an Access Control system for your building. We’ve included everything so you can control access to 2 doors with a UL listed 12v DC 4 channel 12A power supply, the 2 door DX series TCP/IP Web Server Controller, 2 Keypad Access Control Readers, 2 Request to Exit Buttons, 200 Feet of 18/2 Power Wire, 200 Feet of 22 Gauge Stranded and Shielded Cable, 10 Access Control Cards, 10 Access Control Key Fobs and your choice of 2 magnetic locks or 2 door strikes The 4 Door Access Control Board inside this unit is able to connect with 1 reader per door and you’ll also be able to hook up door locking mechanisms like the included mag locks or door strikes that you will be able to choose using the dropdown above.

Our DX series access control boards are easy to work with; simply connect a Cat5 Ethernet cable from the RJ45 Port on the board to the network. Once the access control board is connected to the network you have the ability to access the device from any computer on the network that has the Free DX Access Control Software installed. Access Control DX Software CD is included for Free with the purchase.

To help with heavy duty jobs, this has four fuse protected electronically regulated outputs at 3 amps each to supply 12v DC power for your devices, provides surge suppression and has a fire alarm interface that can be integrated into a fire alarm system. One of the great thing about our DX Series of access control boards is that they can be easily expanded and added too in case you need to add more doors to the system.

This measures 16in (H) x 16in (W) x 4.5in (D) and has both 1/2in and 3/4in knockouts. Don’t forget to add a battery backup and optional reader by using the dropdowns above.

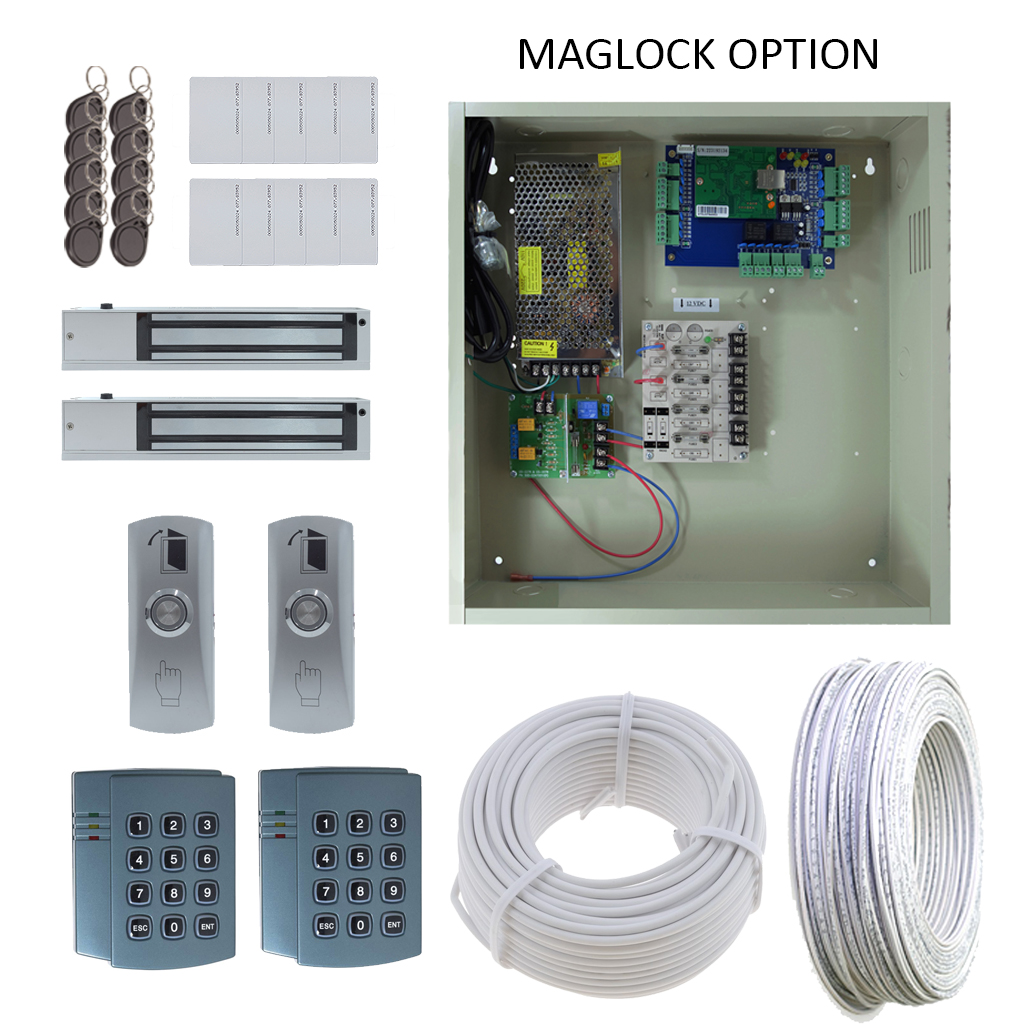

This standard 2 Door Access Control Package Includes:

1 x 12V DC Power Supply, UL, 4 Outputs 12 Amps, w/Fire Alarm Interface

                     – (ACPWR-4P-12A-UL-F)

1 x DX Series Two Door TCP/IP Web Server Controller
                     – (ACP-DXEL2)

2 x DX Series Weather Resistant 125MHz Keypad Access Control Reader
                     – (ACR-DXRF18)

2 x DX Series Small Zinc Alloy Luminous Exit Button w/ Back Box
                     – (ACRE-EB30L)
200 x 22 Gauge 6 Conductor Stranded and Shielded Cable by the Foot
                     – (AC-226-FT)

200 x 18/2 AWG Power Wire by the Foot
                     – (PWR-PF)

10 x DX Series Credit Card Size 125KHz Access Control Cards
                     – (ACC-DX01A)

10 x DX Series 125KHz Access Control Key FOB (Black)
                     – (ACC-DXFOB-B)

2 x DX Series 600lb Magnetic Lock With Time Delay
                     – (ACML-DX600ST)
OR

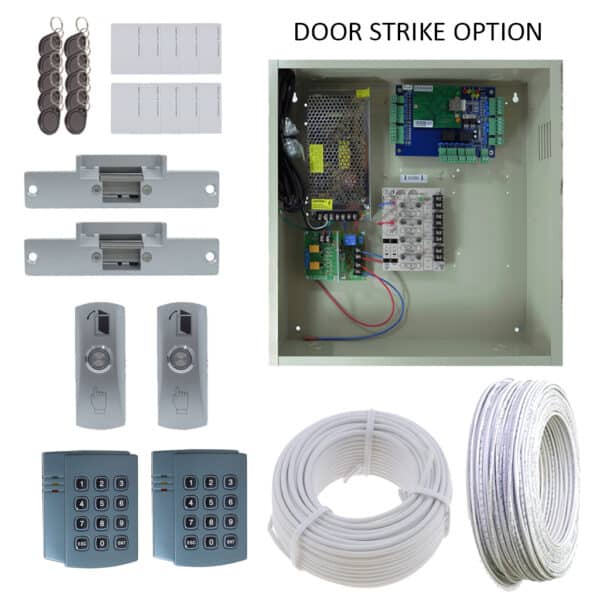

2 x DX Series Standard (Fail Secure) Door Strike

                     – (ACDS-DX1500SE-NS)

Optional Equipment:

DX Series USB Card Reader

                     – (ACC-DXREADER)

Battery Backups 7 AH @ 12 Volt
                     – (ACPWR-BBU 1-7)

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model AC-DX2DHP-P
Unit Size 16in (H) x 16in (W) x 4.5in (D)
Unit Packing Standard
Unit Packing Size 21 x 13.8 x 137.5 px
Accessories User Manual, Warranty card
Conventional Function Off-line operation; Real time supervision; Photo display; Mass storage; Flexible user privilege setup; Remote unlocking; Multi-user supervision; Quick setting; Convenient checking and query; Revisable and printable report form; Report form; Report can be exported to excel file; Card + password unlocking; Alarm for long time unclosing; Alarm for invalid card swiping; First card unlocking; Alarm for illegal break in; Unlocking at definite time; E-map etc.
Professional Function For professional users such as banks, cash houses, telecom stations, power supply stations, prisons and police stations: Interface locking; Intimidation alarm; Integrated fire control; Anti-pass-back and anti-tail; Interlocking; Multi-card unlocking; Emergency double locking; In door population checking; Unlocking based on internal and external validation.
All-in-one-card Management System Normal shift and multi-shifts time attendance management system; Fixed ration dining management system; Meeting attendance management system; Online patrol management system and security alarm management system.
Communication TCP/IP 10M/100M adaptive
English Software Supportable Database Access and SQL
Description Control 2 door, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 2
Door Opening Time Extending Setting 1-600 seconds (adjustable)
Max Quantity of Controller No limit
Remark N denotes quantity of computer serial Port or quantity of 485hub port, support 256pcs ports
Operation Temperature -40°C ~ 70°C
Operation Humidity 10-90 % RH , No Condensation
Quantity of Users 20,000 Users
Quantity of Event Buffers (off-line) 100,000 event buffers
Power Interruption Protection Measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance Between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

Collocations PCB board, Case, Power, Power line, Serial port communication line, Software, Manual, Certificate, Key(2pcs), Carton
Alarm for Long Time Door Open, Illegal Break In, Intimidate Yes
Open and Close Door at Long time Yes
Open Door in Remote Distance Yes
Inter Block Yes
Anti Pass Back and Tail Yes
Multi-card Open Door Yes
Open Long Time at Specified Time Yes
Electronic Map Yes
Urgency Locking Yes
First Card Unlocking Yes
Unlock Based on Internal and External Validation Yes
Remote Administration No
