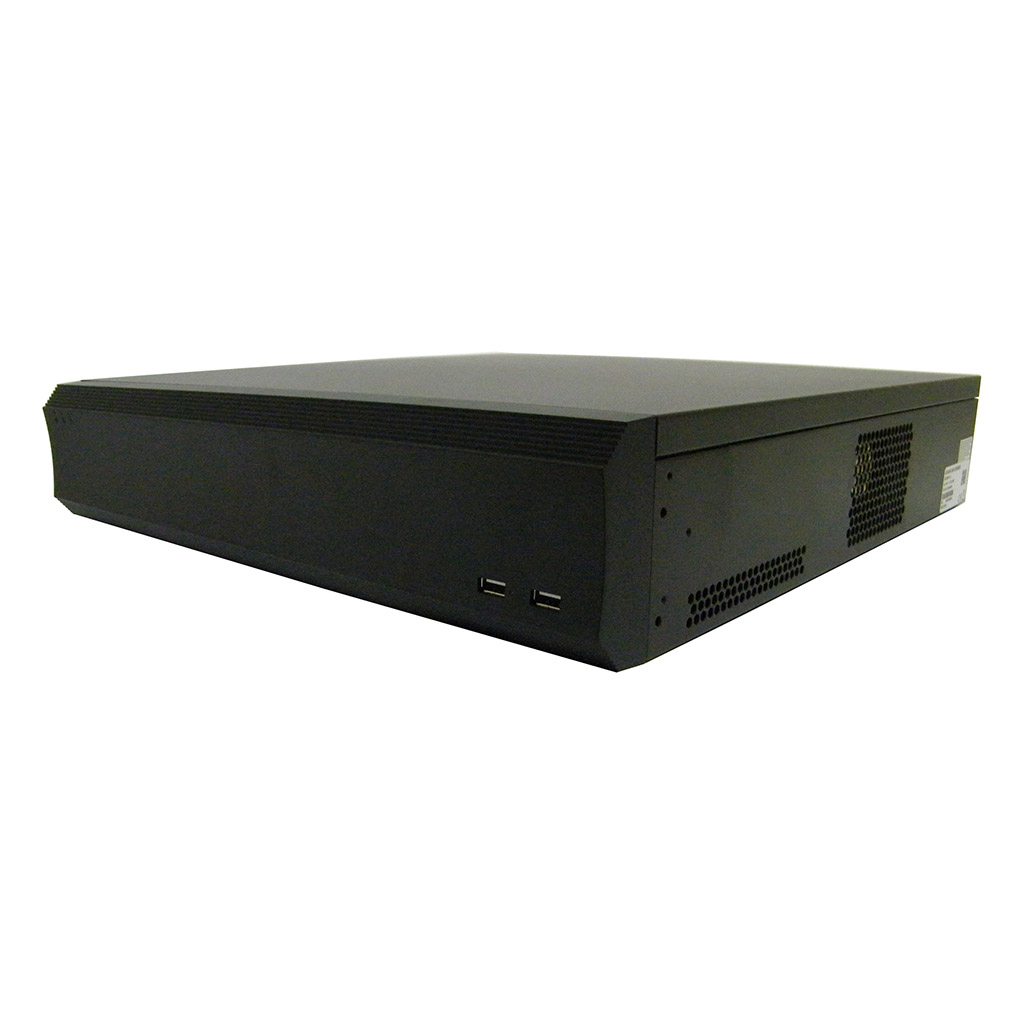

The NVR-EL32-4KAI is an extremely advanced 32 channel Network Video Recorder (NVR) from our Elite series of surveillance equipment that supports up to 16-megapixel cameras. It uses Artificial Intelligence (AI) to provide some state of the art features. This recorder can make use of Smart H.265+, H.265, Smart H.264+ or H.264 video compression technology to minimize the amount of bandwidth and storage required while maintaining the quality of the video.
The Artificial Intelligence capabilities of this device allow for the implementation of some truly innovative technologies. These technologies can isolate or target people and vehicles, as opposed to animals and blowing objects. It can drastically increase motion detection accuracy by filtering out the unwanted source of motions like lighting changes, animals or plants.
This NVR’s AI also increases facial recognition in meaningful ways. Not only is the detection improved but it’s possible to apply filters to search the database based on facial features like facial hair, glasses, gender and/ or age. This will make searching the databases much easier and quicker by only showing faces with the selected features.
Pair this unit with a thermal camera or camera with advanced IVS feature to activate and use the perimeter protection available. You will be able to accurately detect when an unwanted person or vehicle enters your premises and react more effectively, without the false alarms of normal systems. This is very useful when protecting gated communities, storage facilities, and other properties with a barrier to prevent intrusion.
This database is bigger, faster and can be applied in more inventive ways. The databases can hold up to 100,000 faces and it can search up to 24 faces per second. Once a face has been added to the database then other information can be added to it. This includes address, nationality, name, birthday and gender.
Stranger mode is able to detect if a new face (not in the database) is on camera and notify you. This can activate a buzzer, alarm, taking a snapshot and/or recording video. This feature can be manually fine-tuned for an environment to maximize its effectiveness.
Searching through recorded footage is also aided by the AI in meaningful ways. A face can be uploaded to the NVR and then it is possible to search the recordings to see where and when the person of interest appeared on camera.
Automatic Number Plate Recognition is another feature supported by this NVR. It is a great way to track entrance and exit of vehicles by tracking the license plates. Plates can be imported from recorded video or manually uploaded.

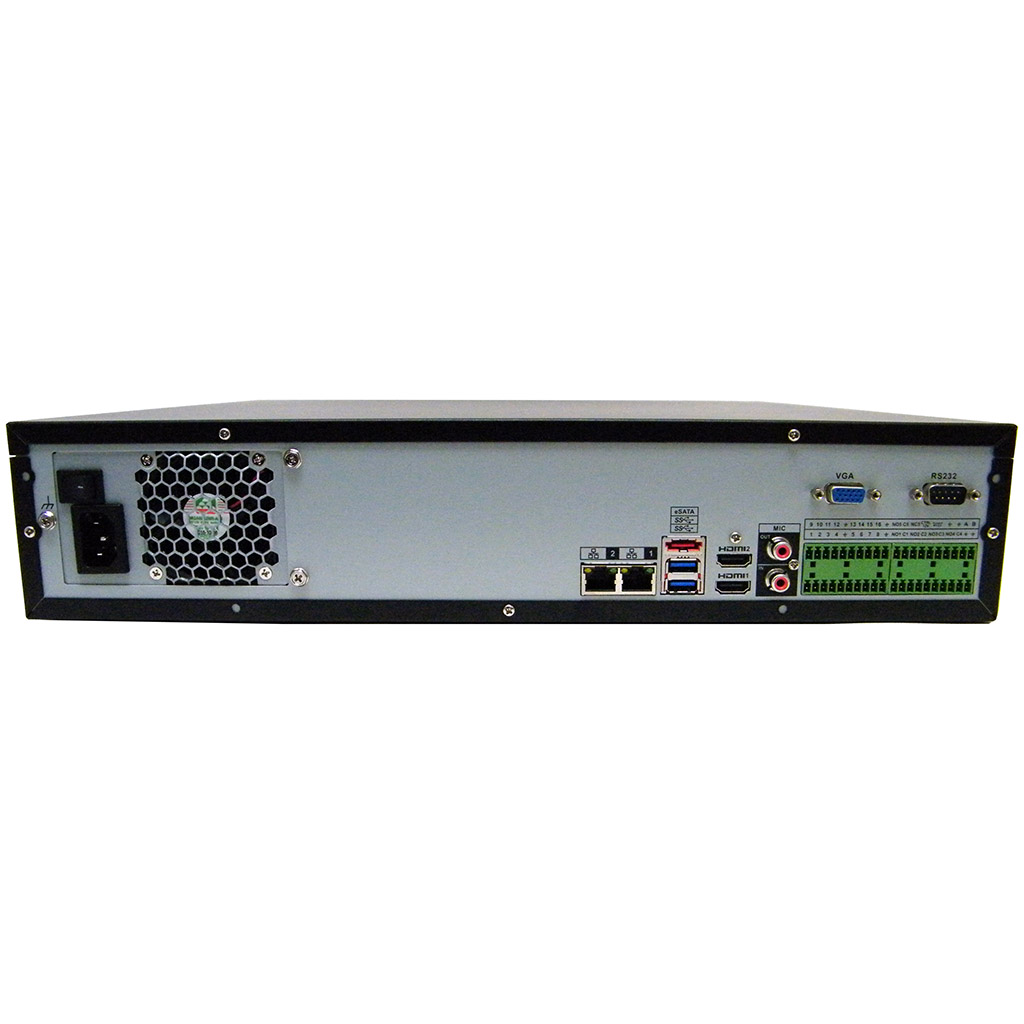

This NVR has 8 SATA ports to allow for up to 80TB of storage capacity on the inside, as well it offers an eSATA port for extra external storage capabilities when paired with a compatible eSATA device.
The NVR is also ONVIF 2.4 compliant for accepting 3rd party cameras to work as well it is SDK and CGI compliant for better cross-brand functionality. It is always highly recommended to stick within the same series of cameras and recorders for the absolute best functionality, as firmware upgrades can oftentimes ruin the compatibility of 3rd party compatibility.
This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.
Free Remote Viewing Capability
All of our DVR's & NVR's have remote viewing capabilities. Free Apps & Software are for PC, Mac, iPhone, iPad, Android and Tablets
|Number Of Cameras||32|
|Number Of SATA Connections||8|
|Has Alarm Inputs / Outputs||Yes|
|Video Output Types||HDMI, VGA|
|Video Output Resolutions:||(3840x2160), (1920x1080), (1280x1024), (1280x720), (1024x768)|
|Resolutions Capable||16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1|
|Display Screen Split||1/4/8/9/16/25/36|
|Compression of Video||H.265+/H.265/H.264+/H.264/MJPEG|
|Connection Apps||Smart PSS, iDMSS, gDMSS|
NVR-EL32-4KAI Document Downloads
|Product Specifications||Detailed Feature List and Product Specifications|
|Product Manual||Original Product Manuals|
Elite Series DVR / NVR / IP Camera Remote Viewing Downloads
|Smart PSS-v1.0 - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS-v2.01 Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|PSS - PC Surveillance Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Elite Series Smart Player Downloads: Software & Manual||Windows XP / Vista / Windows 7,8,10 / Windows Server 2003 & 2008|
|Smart PSS MAC Surveillance Downloads: Software & Manual||SMART PSS FOR MAC (All MACs)|
|Smart PSS-V2 - MAC Surveillance Downloads: Software & Manual||SMART V2 PSS FOR MAC (All MACs)|
|Smart PSS BETA Downloads: Software & Manual||SMART BETA PSS FOR MAC (All MACs) This software is currently in Beta please report any bugs that you encounter, the GM version of this app will soon be available. Thank you for your patience|
|Smart Player Elite Mac Downloads: Software & Manual||Download|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX (All Mac Versions)|
|PSS MAC Surveillance Downloads: Software & Manual||MacOSX 10.6.8 (Snow Leopard only)|
|Elite Mac Safari Plugin Downloads: Software||MacOS (All Mac Versions)|
|iPhone / iPad Mobile Viewing Software||iPhone / iPad App from the Apple App Store|
|Android Mobile Phone Viewing Software||Android Phone App from the Google Play Store|
|Android HD Tablet Viewing Software||Android Tablet App from the Google Play Store|
Elite Series DVR / NVR / IP Camera Tools & Utilities
|Configuration Tool Downloads: Software & Manual||Windows|
|Configuration Tool for VDB-EL1VAW-B: Software & Manual||Windows|
|Smart Player Downloads: Software & Manual||Windows|
|Video Converter Downloads: Software & Manual||Windows|
|HDD Download-Tool Downloads: Software & Manual||Windows|
|Configuration Tool Mac Downloads: Software & Manual||Mac|
|Safari Reset Tool Downloads: Software||MacOSX (All Mac Versions)|
|POS Instructions Downloads: Manual|
