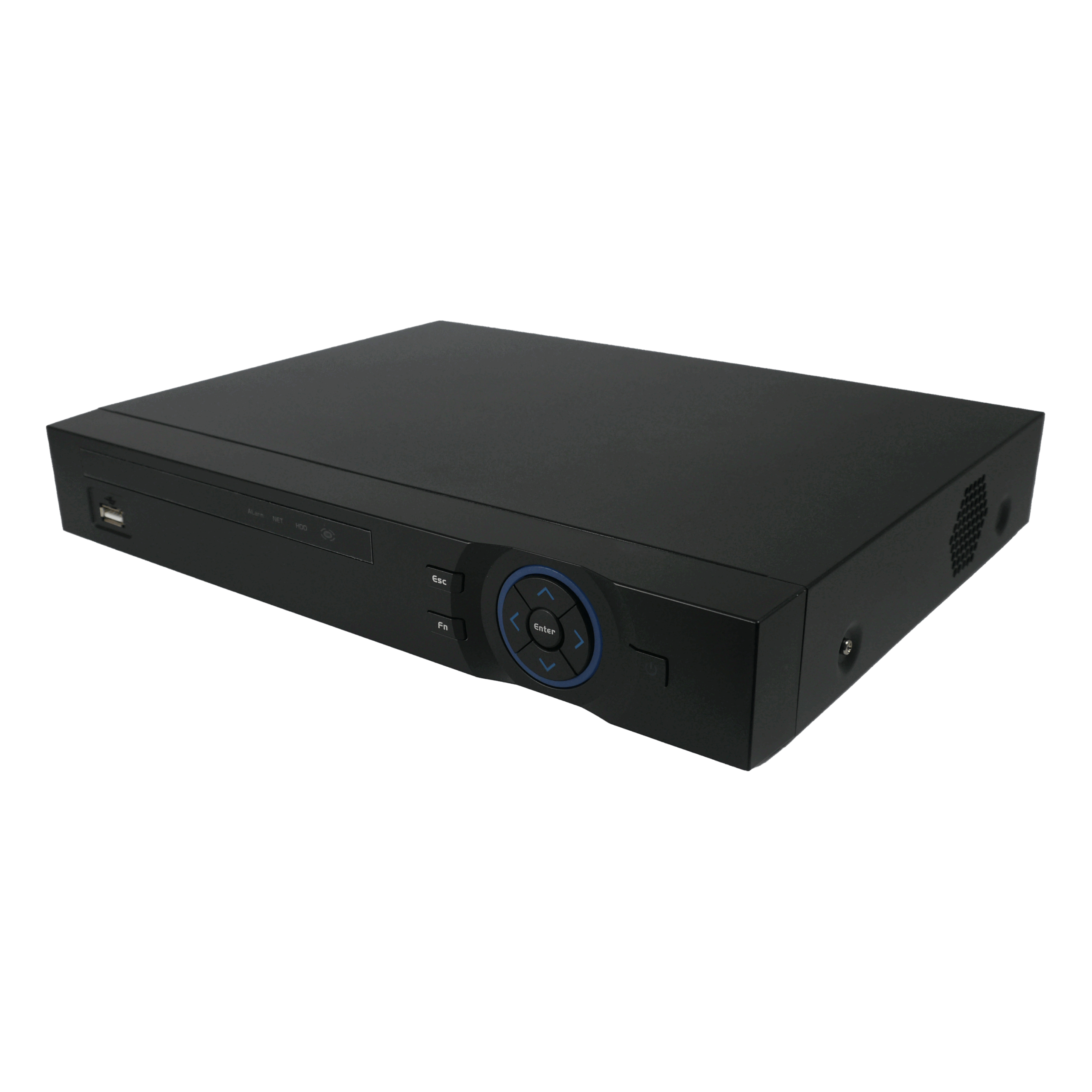

4 Channel Mini 1U AI Series DVR W/H.265+&SMD Plus

(1 customer review)

Original price was: $129.94.Current price is: $116.95.

Save 10%

Hard Drive – Optional

Recommended Accessories

18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
18x18x5 Small Steel Lockbox with fan designed for 1U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution
AI Coding

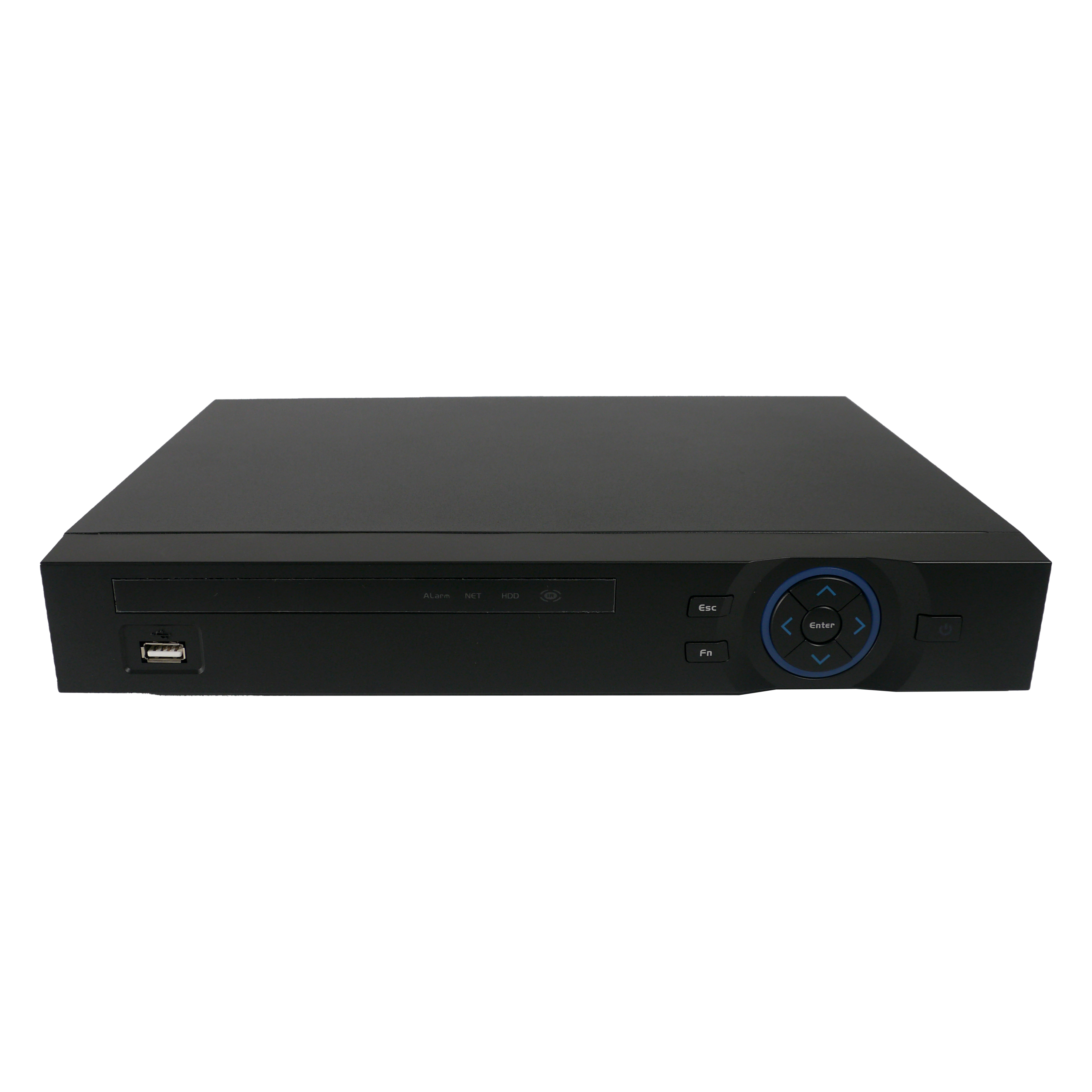

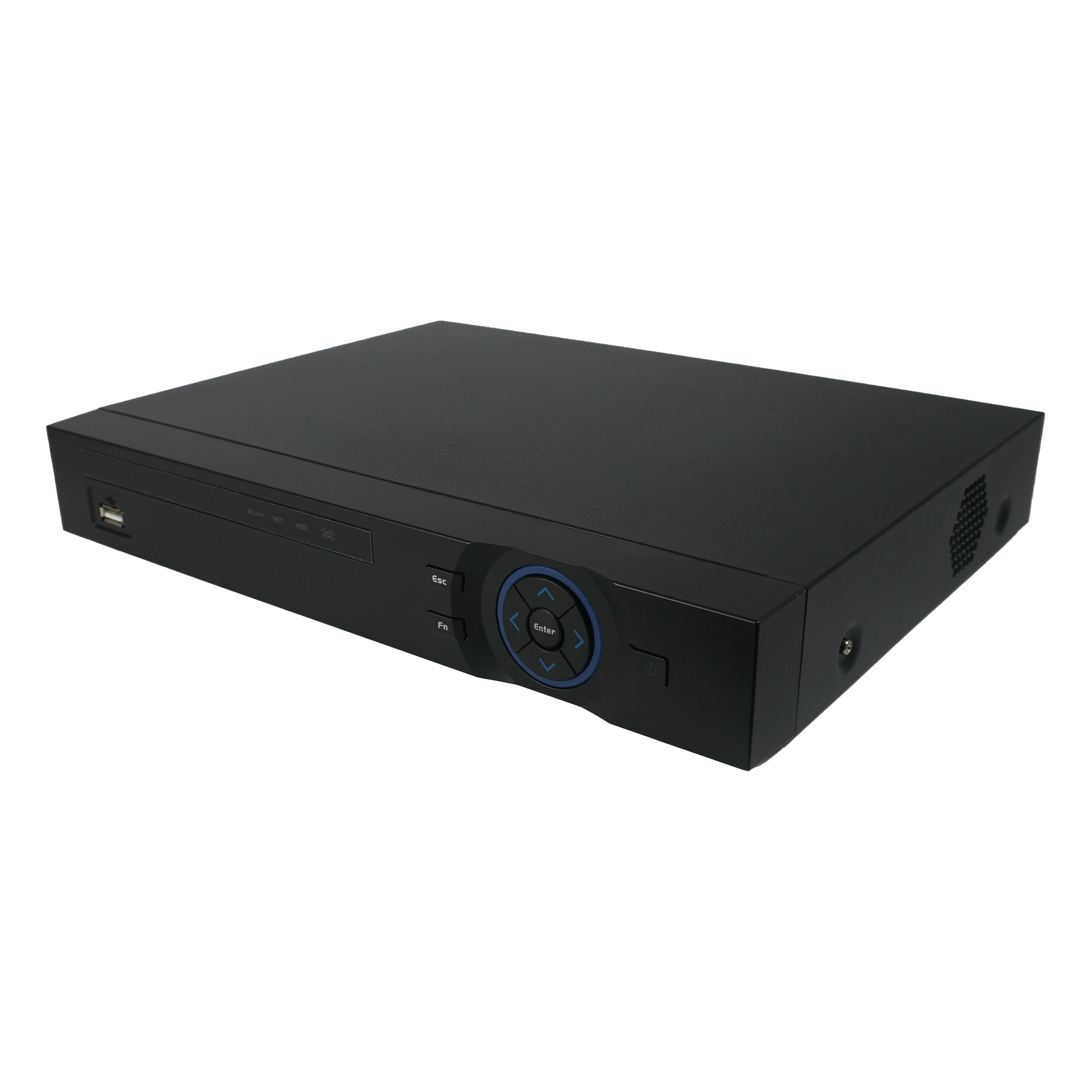

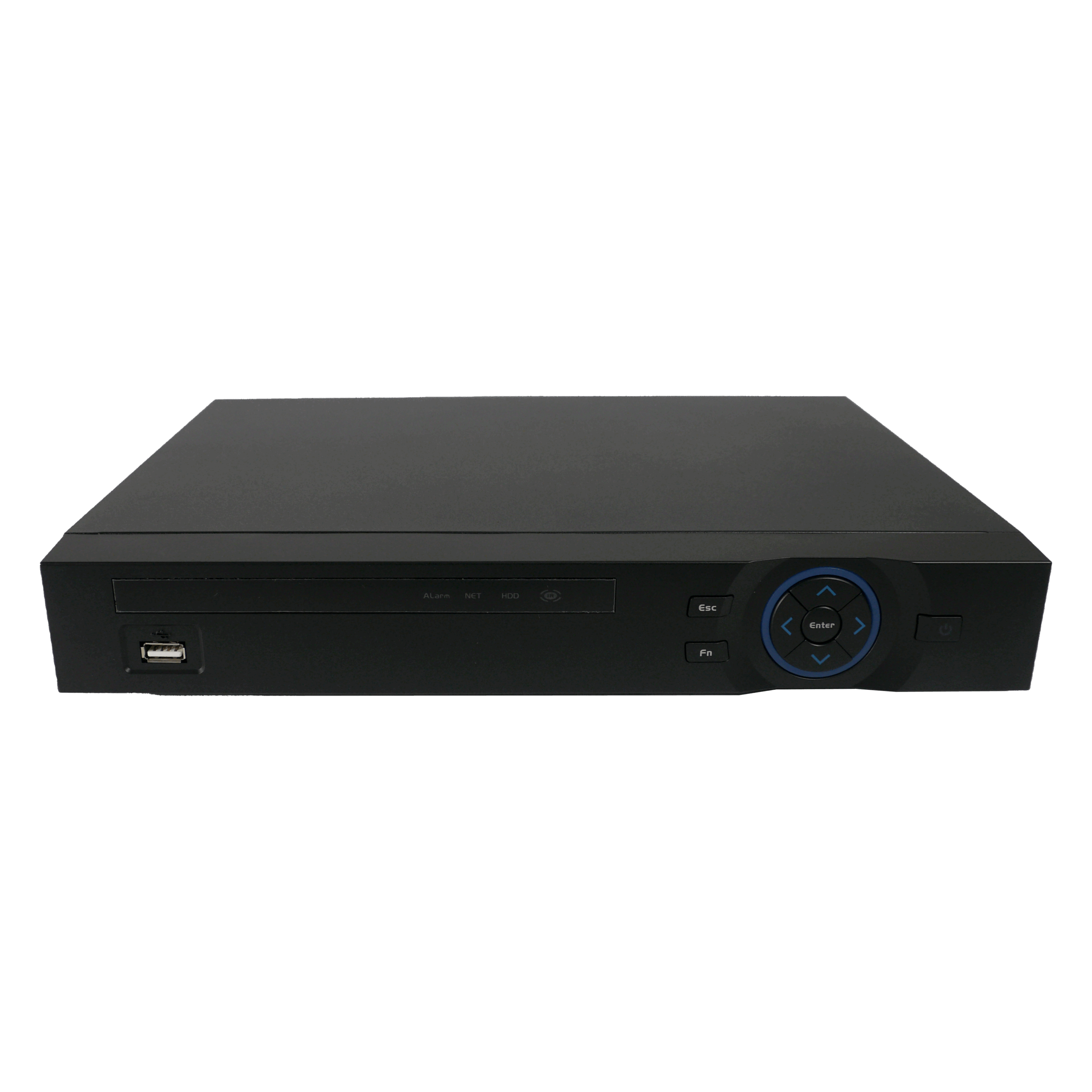

Introducing the newest in our incredible line of Elite 4 channel Penta Brid DVRs, the PENDVR-EL4ME4K-AI3!

Featuring four 4K capable COAX channels and four 4K capable IP channels, for a maximum total of 8 cameras!

The AI in AI3 is short for artificial intelligence, and this unit packs some serious AI features.

The first of which is real-time facial recognition. This has the ability to analyze facial attributes such as gender, age, expression, glasses, mustache, mouth, and facemask.

With smart motion detection plus (SMD+) the motion detection capabilities of this unit far exceed what was available in the past. Now, eliminate pesky false alerts with SMD by ignoring targets based on human/vehicle parameters and selection.

Along with motion detection, perimeter protection via IVS tripwire and intrusion also further helps eliminate false alerts.

When looking back through recordings using the AI search means you don’t have to spend hours sifting through footage. Now, you can search by events and specific parameters that narrow down your results quicker than ever.

Features don’t mean you have to sacrifice image quality either, the PENDVR-EL4ME4K-AI3 can accept and output in an Incredible 4Kor 8 Megapixel resolution for one of the sharpest possible images available today.

With AI Encoding combined with the powerful high-resolution Video Compression of h265 technology aiding that recording process, you’ll save more space and have larger records even with higher resolution cameras.

Of course like all of our recorders, world-class technical support, and free remote viewing apps are included at no charge. We can help you get connected to see your cameras on your PC or Smartphone anytime, anywhere!

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

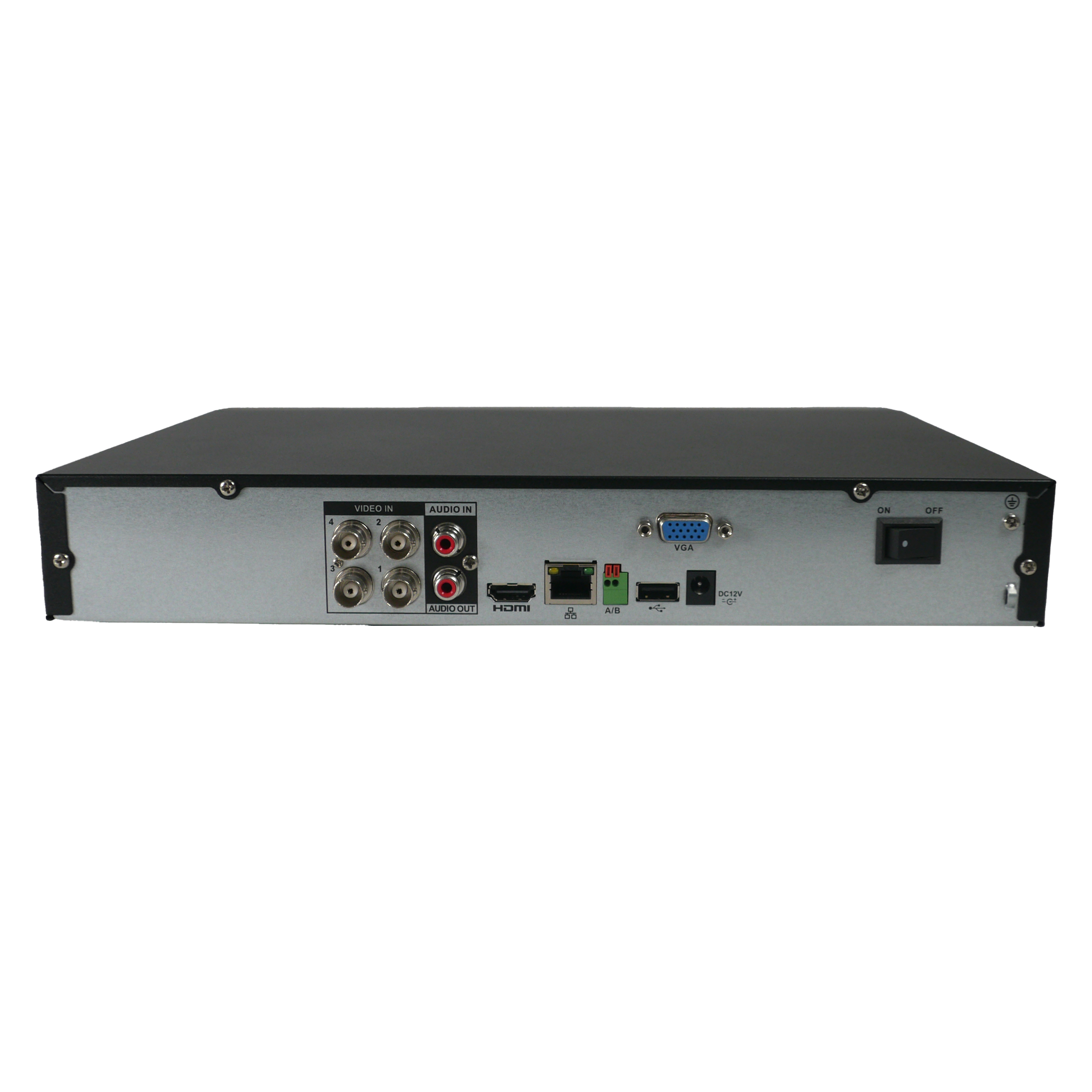

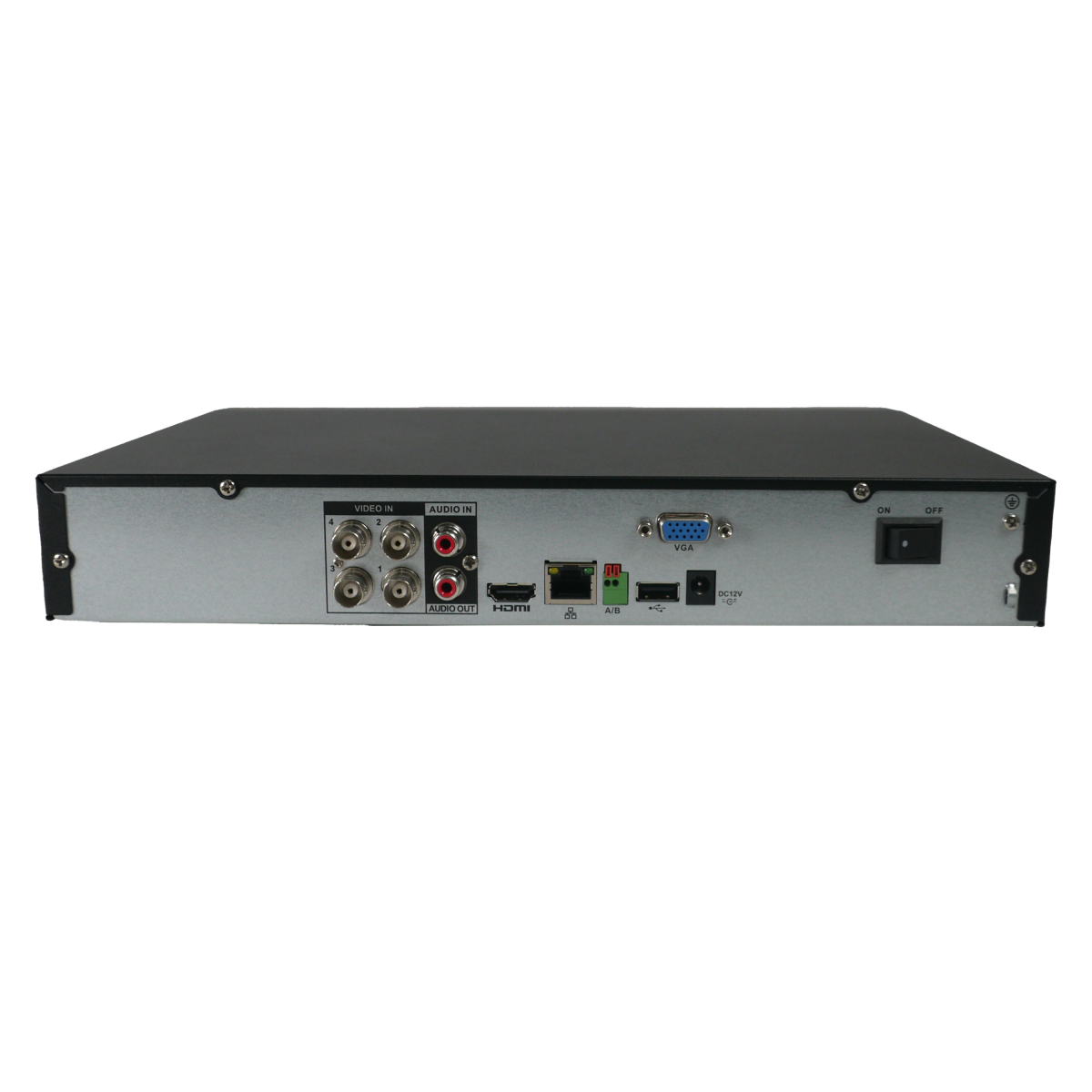

Number Of Cameras 4 BNC | IP 4+4 channels, each channel up to 8MP
Number Of SATA Connections 1
Has Alarm Inputs / Outputs No
Video Output Types 1 HDMI & 1 VGA
Video Output Resolutions: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Size Mini 1U
Resolutions Capable 4K; 6MP; 5MP; 4MP; 3MP; 4M-N; 1080p; 720p; 960H; D1; CIF
Max Bandwidth 64 Mbps (32 kbps–6144 kbps per channel)
Display Screen Split BNC Only 1/4 | IP extension mode 1/4
Compression of Video AI Coding/H.265+/H.265/H.264+/H.264
Connection Apps Smart PSS, Elite Viewer Pro
Perimeter Protection Yes
Object Detection No
Face Detection Yes
Face Recognition Yes
Smart Motion Detection Yes
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
