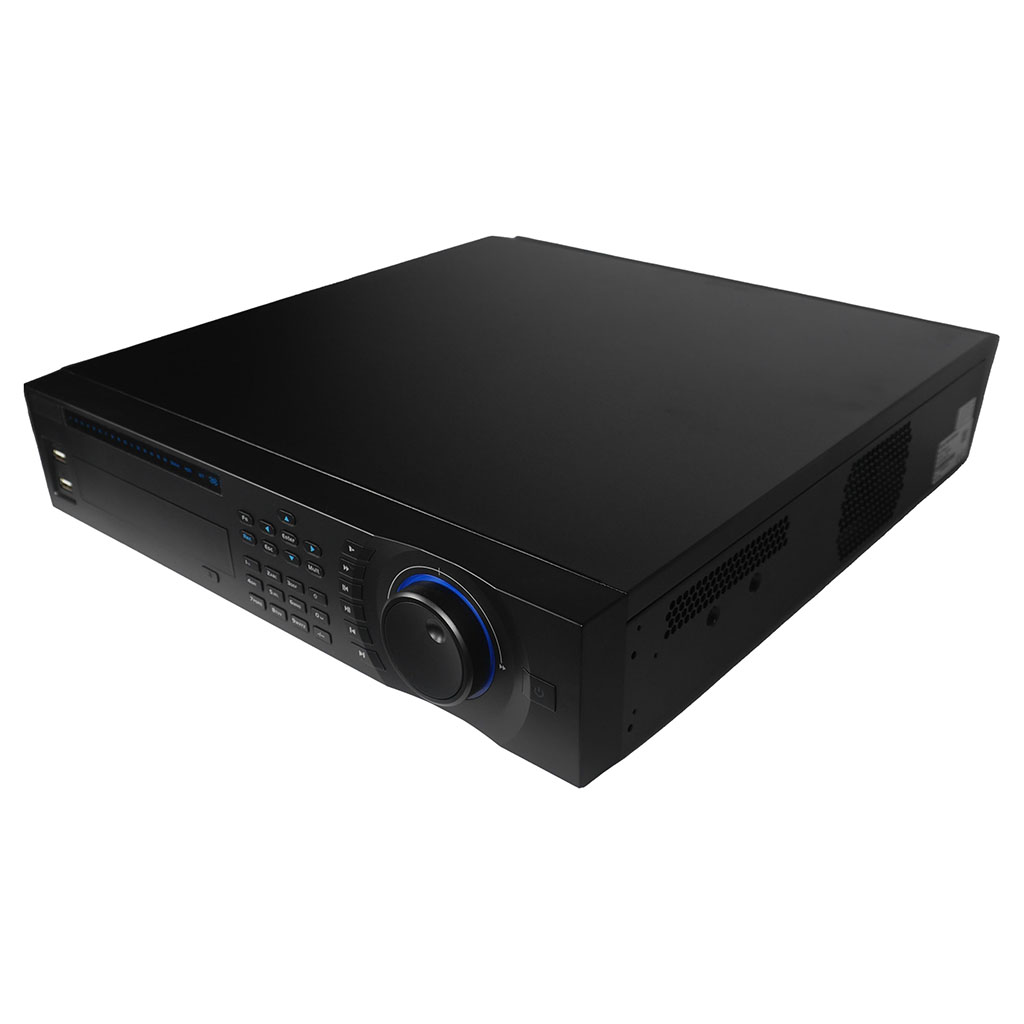

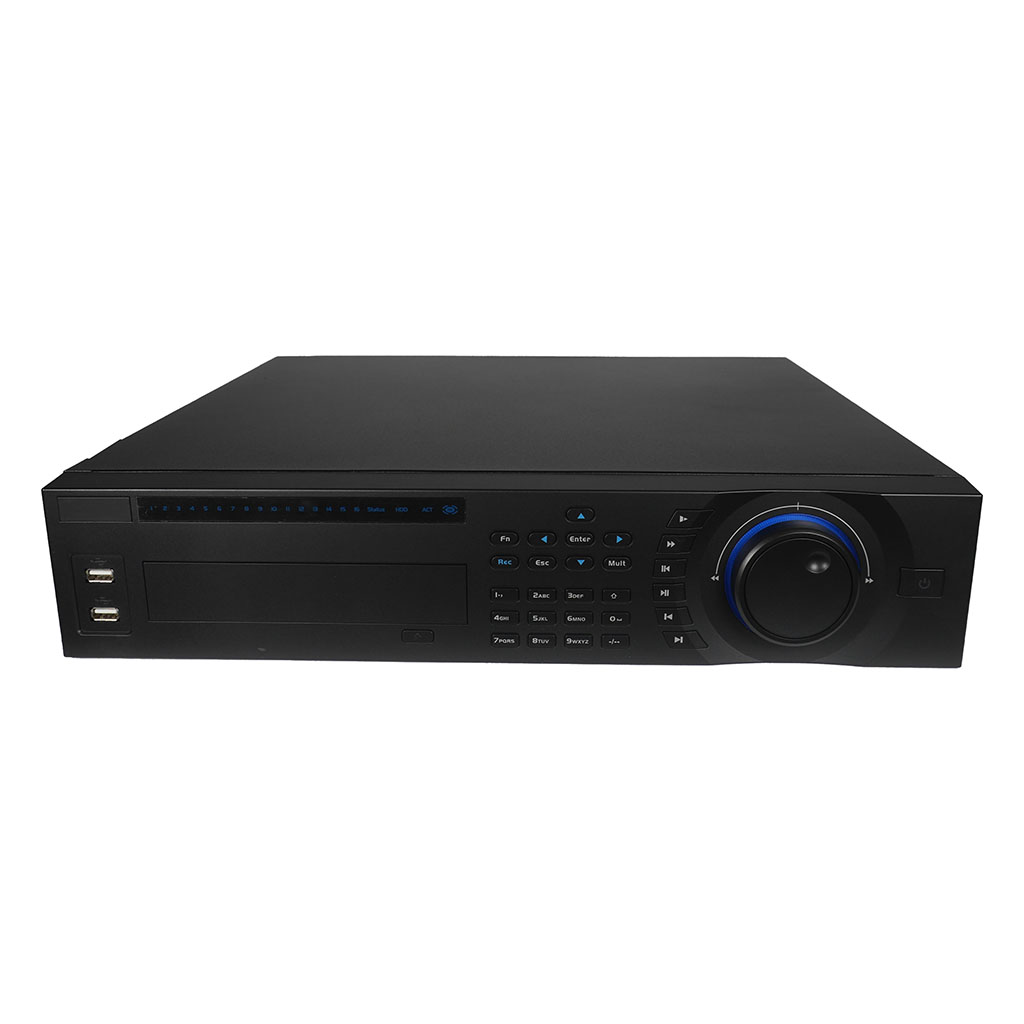

ELITE Series 16 Channel 2U 4K Pentabrid DVR


In stock

Hard Drive 1 (Optional)

Hard Drive 2 (Optional)

Hard Drive 3 (Optional)

Hard Drive 4 (Optional)

Hard Drive 5 (Optional)

Hard Drive 6 (Optional)

Hard Drive 7 (Optional)

Hard Drive 8 (Optional)

Recommended Accessories

21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs
21x24x8 Large Steel Lockbox with fan designed for 1.5 and 2U DVRs & NVRs


Number of Cameras
Number Of HDD
Max Recorder Resolution
AI Coding; H.265+; H.265; H.264+; H.264

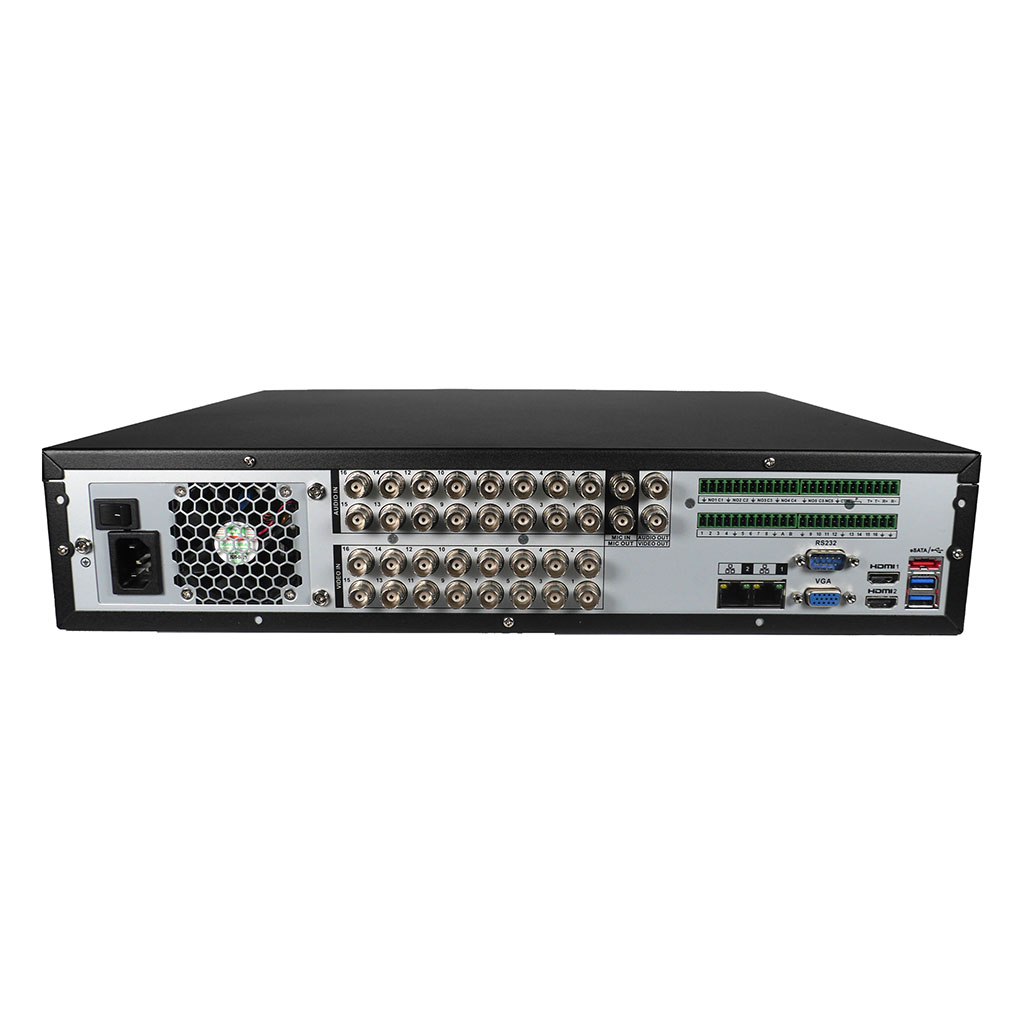

This 16-channel Penta Brid DVR is from our Elite series of surveillance products. It can work with 5 different types of cameras. It can use analog, HD-CVI, HD-CVI, and AHD through the BNC connections on the back of the unit. It can also use IP cameras through a standalone POE switch. In total, This recorder can actually handle 16 BNC cameras and 16 IP cameras.

H.265+ video compression can be used to minimize the amount of data being transmitted and stored. This DVR supports up to 4K resolution cameras and has three video outputs, 1 VGA and 2 HDMI. The second HDMI can be configured to display different cameras from the first one. -It also has 8 SATA hard drive bays in it, so there can be a significant amount of storage space available.

Equipped with SMD Plus, also known as Smart Motion Detection, the PENDVR-EL16M4K-AI3 utilizes intelligent algorithm-based motion detection software to filter out unwanted information leaving you with far fewer false alerts. This is usable across all 16 COAX channels.

This product comes with a 3 year warranty! FREE US based tech support for the life of the product! Don't forget to download our FREE remote viewing applications, available on IOS & Android! For further warranty information, click here.

Ultra HD Resolution

Take your security to the next level and experience incredible detail with 4K Ultra-High resolutions.


4K Ultra High Definition Resolution

4K resolution is a resolution that consists of 4,000 pixels. 4K, which is specifically 3840 × 2160 (4K UHD), has now become the standard for video quality. 4K resolution is not just for TV graphics. It’s now being utilized for modern video surveillance systems and can be an important aspect for high-quality security cameras in order to provide a better quality recording, deliver better results for analysis, and ultimately make it clearer to see for everything from security to entertainment.

Remote Viewing Apps

The ability to view security camera systems remotely has transformed the video surveillance industry in powerful ways. Prior to this innovation, manned users were needed on location to view live feeds. Now, it’s possible to view live camera feeds digitally through network-connected devices. IP security cameras make this innovation possible. With remote viewing, anyone, from anywhere in the world, can visibly watch live camera feeds.

Number Of Cameras 16+16
Number Of SATA Connections 8
Has Alarm Inputs / Outputs Yes
Video Output Types 2 HDMI, 1 VGA, 1 TV (BNC)
Video Output Resolutions: VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI2 is configurable
Size 2U
Resolutions Capable 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1
Max Bandwidth 128 Mbps
Display Screen Split When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
Compression of Video AI Coding; H.265+; H.265; H.264+; H.264
Connection Apps Smart PSS, ELITE Viewer Pro, DMSS
Document Downloads
Product Specifications Detailed Feature List and Product Specifications
Product Manual Original Product Manuals
