Description

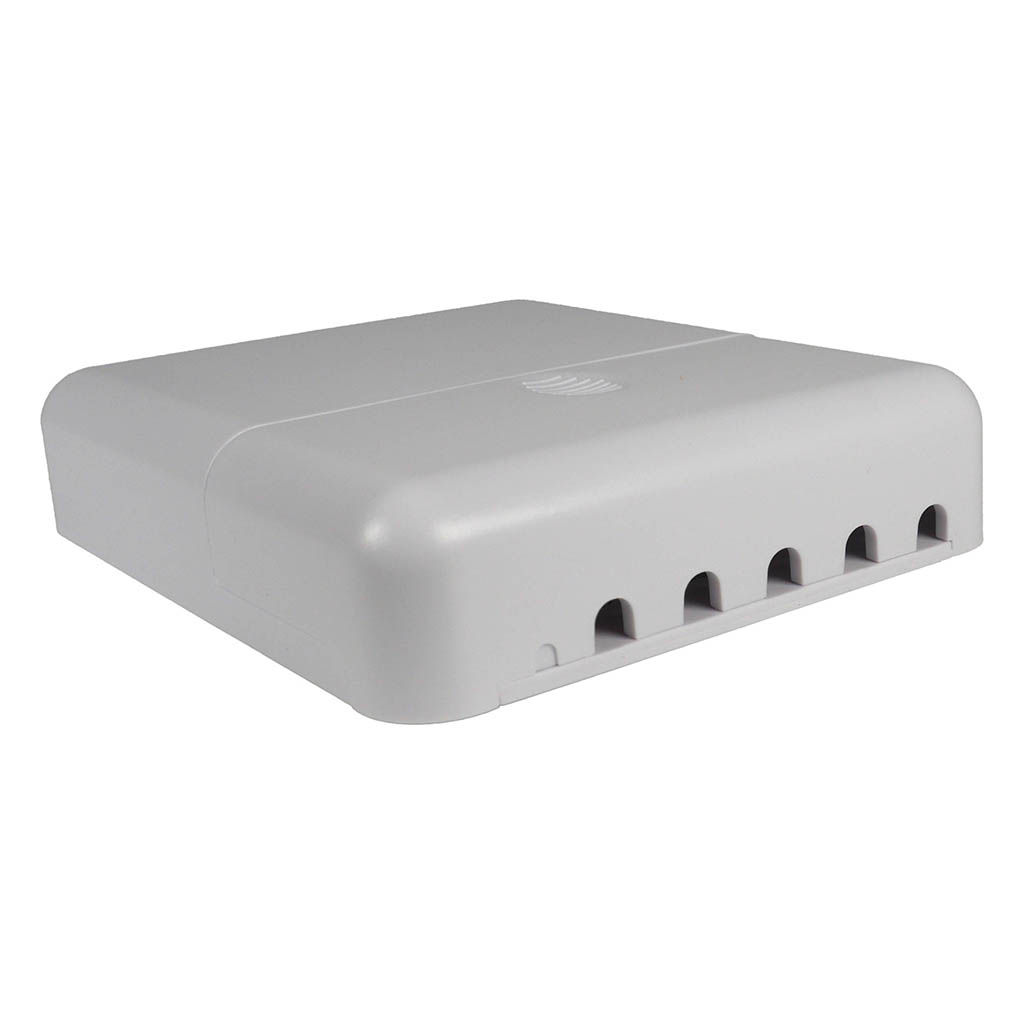

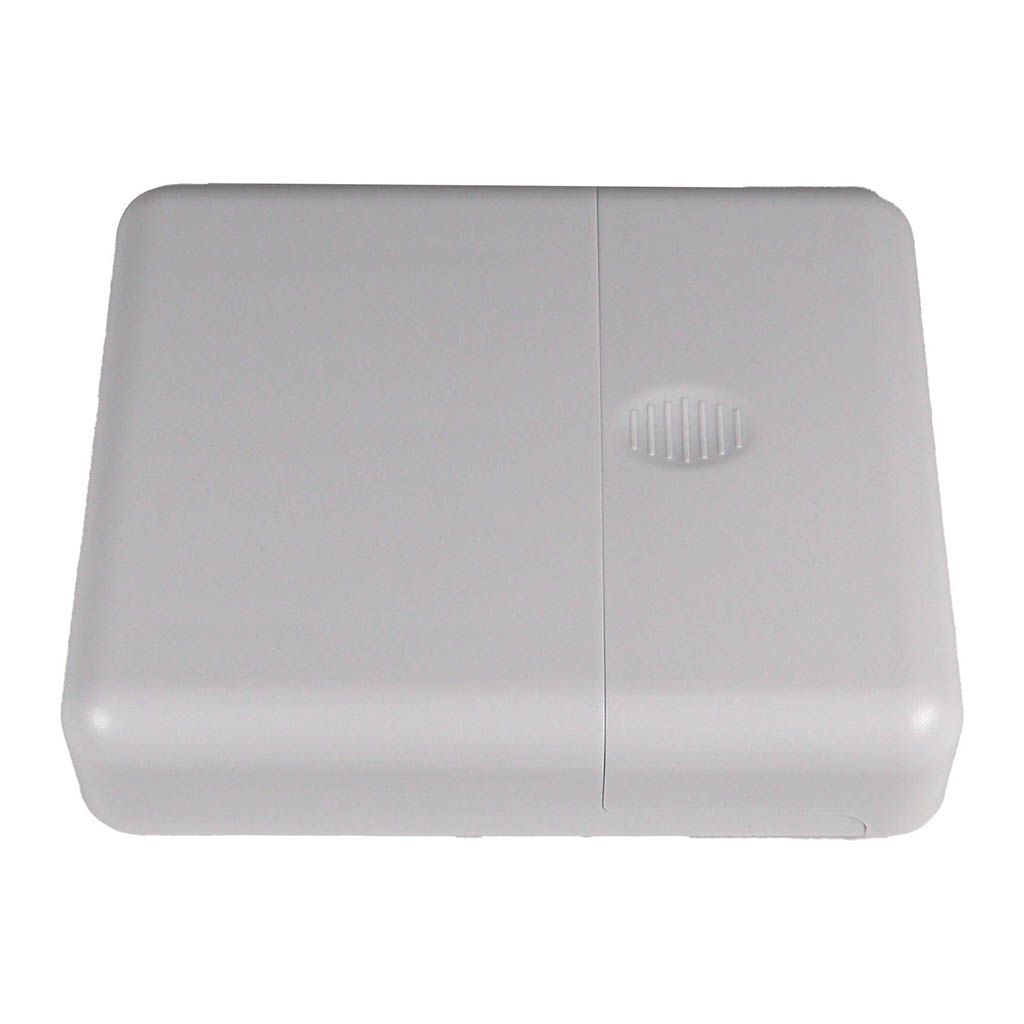

The POEEXT-OUTDOOR-4 is an outdoor switch (It is not waterproof) which takes a single POE and can split it into 4 separate POE runs, each up to 300ft.
This device take the power from the POE switch at the head end. The switch can be 30W or 60W but a 30W POE will mean there is only half the power that could be available. If you use a 60W you get 50W at the end split between the cameras. If you use a 30W you get 25W at the end split between the cameras.
This device is passive so power is not needed. It will get it’s power from the POE switch at the head end of the cable run.
Networking Interfaces |
10/100/1000 Mbps Ethernet RJ45 |
Network medium |
100 Meter (328ft) |
Ethernet Standard |
IEEE 802.af/IEEE 802.at |
Dimensions |
125 x 150 x 36 mm (4.92 x 5.90 x 1.42″) |
Weight |
242g |
Enclosure |
White Pvolycarbonate |
Temprature |
|
Operating Humidity |
5 to 95% Non condensing |
PoE pin assignment |
V+(Rj45 Pin 3,6) V-(Rj45 Pin 1,2) |
Switching capacity |
10Gbps |
Typical Power Consumption |
15 W |
Max. power Consumption |
60W |
Features
Downloads
Document Downloads
Product Specifications | Detailed Feature List and Product Specifications |
