2 Door DX Board Package with Maglock OR Doorstrike

(1 customer review)

$549.12 $494.21

In stock

Maglock Or Door Strike *

Card Reader *

Battery Backup *

SKU: AC-DX2D-P Categories: ,
Description

Description

Description

This DX series package includes everything you need to set up a complete 2 door access control package. This includes a 12V DX Power Control Box, a 2 door TCP/IP Web Server Controller, 2 Keypad Access Control Readers, 2 Request to Exit Buttons, 200 feet 18/2 Power Wire, 200 feet of 22 Gauge Stranded and Shielded Cable, 10 Access Control Cards, 10 Access Control Key Fobs and either 2 magnetic locks or 2 door strikes. It’s your choice depending on which will work better for you and all you need to do is leave it as is for the Maglock option or choose the Door Strike option up above. You can also wire this access control panel to electronic door locks (such as a MagLock or Electric Door Strike) an alarm and other devices such as a siren or strobe. There are a lot of possibilities for wiring your inputs and outputs.

You’ll be able to control this 2 door access control panel pretty easily over your network. Just plug one end of an Ethernet cable into the access control board’s RJ45 port, plug the other end into your network, and with our free DX Access Control Software, any PC that is on that network can see the access control board. Then all of your settings can be configured for everything from creating users to scheduling access times and much, much more.

Our customers love the DX Series Access Control Boards in part because of the ease of expansion. Adding additional access for more doors is easily done by purchasing more boards, connecting those to the existing network and configuring the DX Access Control Software to work with all of the boards. As an example, you decide after completing setup of this 2 door access control panel that you want to add one more door. Simply purchase a 1 door access control panel, connect it to the network using an Ethernet cable, and the software will now control 3 doors. Need to add 2 more doors? 10 more? No problem, the DX Access Control Software can manage that. It will see all your doors provided they are all connected to the same network.

Don’t forget to add a battery backup and optional reader by using the dropdowns above.

This product comes with a 1 year warranty! FREE US based tech support for the life of the product! For further warranty information, click here.

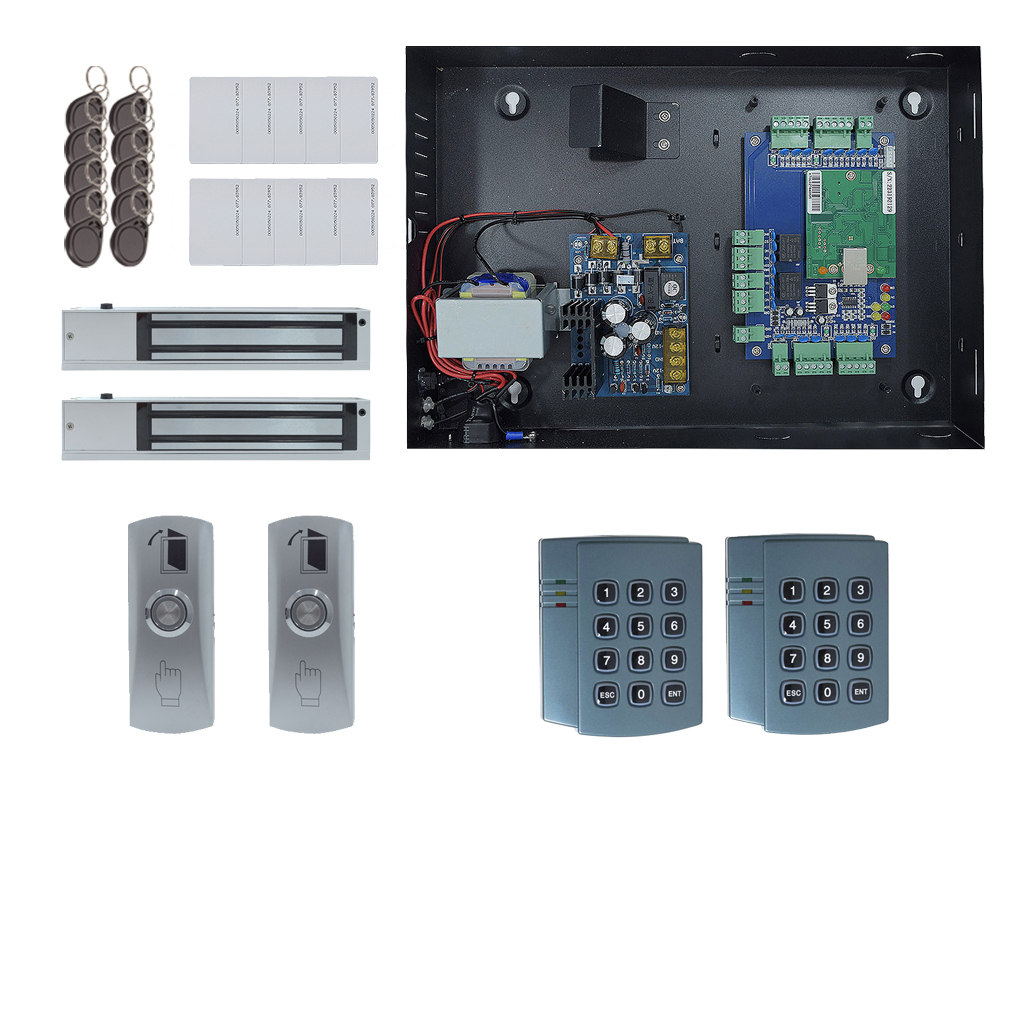

This standard 2 Door Access Control Package Includes:

1 x DX Series Control Board Power Supply Box 12V 5A

                    – (ACPWR-DXCASE12V5A)

1 x DX Series Two Door TCP/IP Web Server Controller
                    – (ACP-DXEL2)

2 x DX Series Weather Resistant 125MHz Keypad Access Control Reader
                   – (ACR-DXRF18)

2 x DX Series Small Zinc Alloy Luminous Exit Button w/ Back Box
                   – (ACRE-EB30L)

200 x 22 Gauge 6 Conductor Stranded and Shielded Cable by the Foot
                   – (AC-226-FT)

200 x 18/2 AWG Power Wire by the Foot
                   – (PWR-PF)

10 x DX Series Credit Card Size 125KHz Access Control Cards
                   – (ACC-DX01A)

10 x DX Series 125KHz Access Control Key FOB (Black)
                   – (ACC-DXFOB-B)

2 x DX Series 600lb Magnetic Lock With Time Delay
                  – (ACML-DX600ST)
OR

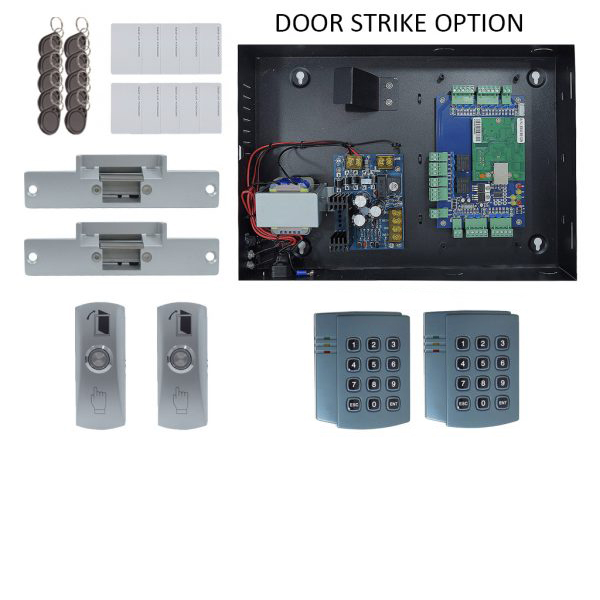

2 x DX Series Standard (Fail Secure) Door Strike
                 – (ACDS-DX1500SE-NS)

Optional Equipment:

DX Series USB Card Reader

               – (ACC-DXREADER)

Battery Backups 7 AH @ 12 Volt
               – (ACPWR-BBU 1-7)

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model AC-DX2D-P
Unit Size 160mm x 106mm
Unit Packing Way Standard
Unit Packing Size 21 x 13.8 x 137.5 px
Accessories User Manual, Warranty card
Conventional Function Off-line operation; Real time supervision; Photo display; Mass storage; Flexible user privilege setup; Remote unlocking; Multi-user supervision; Quick setting; Convenient checking and query; Revisable and printable report form; Report form; Report can be exported to excel file; Card+password unlocking; Alarm for long time enclosing; Alarm for invalid card swiping; First card unlocking; Alarm for illegal break in; Unlocking at definite time; E-map etc.
Professional Function For professional users such as banks, cash houses, telecom stations, power supply stations, prisons and police stations: Interface locking; Intimidation alarm; Integrated fire control; Anti-pass-back and anti-tail; Interlocking; Multi-card unlocking; Emergency double locking; In door population checking; Unlocking based on internal and external validation.
All-in-one-card Management System Normal shift and multi-shifts time attendance management system; Fixed ration dining management system; Meeting attendance management system; Online patrol management system and security alarm management system.
Communication TCP/IP 10M/100M adaptive
English Software Supportable Database Access and SQL
Description Control 2 doors, get in and out door by swiping card, and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 2
Door Opening Time Extending Setting 1-600 seconds (adjustable)
Max Quantity of Controller No limit
Operation Temperature N denotes quantity of computer serial port or quantity of 485hub port, support 256pcs ports
Operation Humidity -40°C ~ 70°C
Quantity of Users 10-90 % RH , No Condensation
Quantity of Event Buffers (off-line) 20,000 Users
Power Interruption Protection Measure 100,000 event buffers
Max Distance from Reader to Controller High Speed Memory, Records never lose
Max Distance Between Controllers 100m (suggestion distance 80m)
Collocations RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

Alarm for Long Time Door Open, Legal Break-In, Intimidate PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Compulsive Open and Close Door at Long Time Yes
Open Door in Remote Distance Yes
Inter Block Yes
Anti Pass Back and Tail Yes
Mutli-card Open Door Yes
Open Long Time at Specified Time Yes
Electronic Map Yes
Urgency Locking Yes
First Card Unlocking Yes
Unlock Based on Internal and External Validation Yes
Keypad (card + password, supper password) Yes
Remote Administration No
