DX Series Four Door Access Control Package

(1 customer review)


Out of stock


Join the waitlist to be emailed when this product becomes available

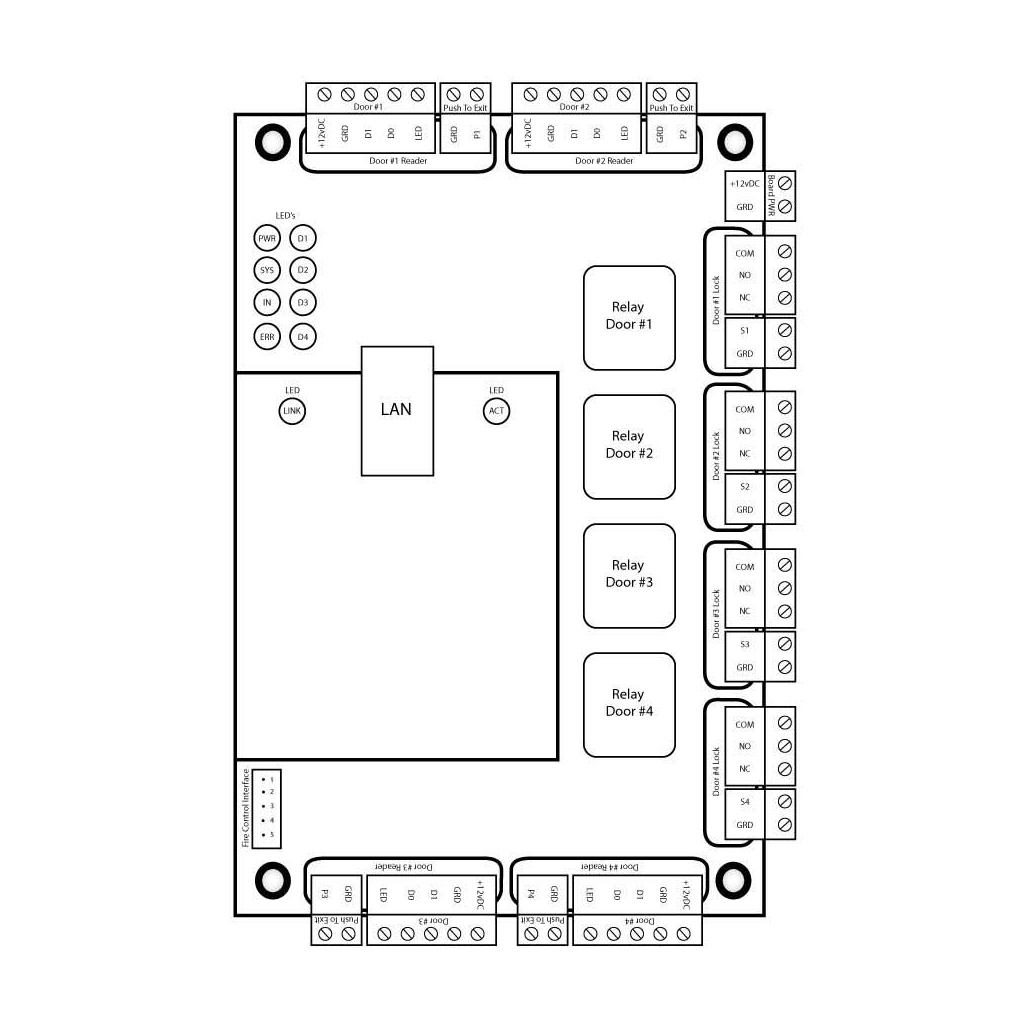

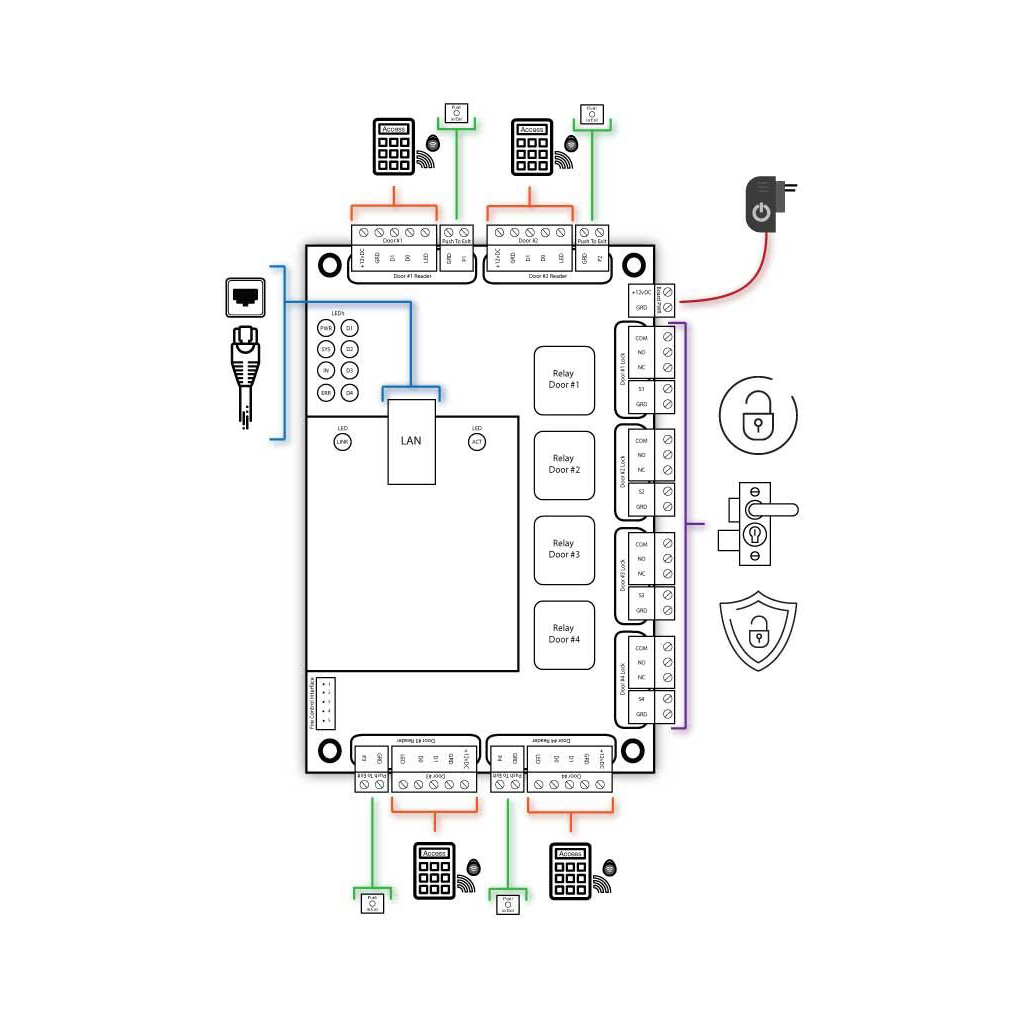

The ACP-DXEL4-Pack is a 4-door access control package. It can connect one proximity card reader per door, giving you access to 4 readers. You can also wire this access control panel to electronic door locks (such as a MagLock or Electric Door Strike) an alarm and other devices such as a siren or strobe. There are a lot of possibilities for wiring your inputs and outputs.

You can access this 4 door access control panel pretty easily over your network. All you need is an Ethernet cable. Plug one end into the access control board into the RJ45 port, and plug the other end into your network. We will provide you with Free DX Access Control Software so that any PC that is on that network can see the access control board. Then you can configure everything you need to do from creating users to scheduling access times and more.

The best part about our DX Series of Access Control Boards is the ability for future expansion. You can add additional access to more doors by just purchasing more boards, connect those to the existing network and the DX Access Control Software can control them all. For example, after getting this 4 door access control panel you realize that you could have controlled one more door. All you need to do is get a 1 door access control panel, connect it to the network via an Ethernet cable, and the software will now control 5 doors. Want 2 more doors? 10 more? No problem, our DX Access Control Software is that good. It will see all your doors provided they are all connected to the same network.

This Package Includes

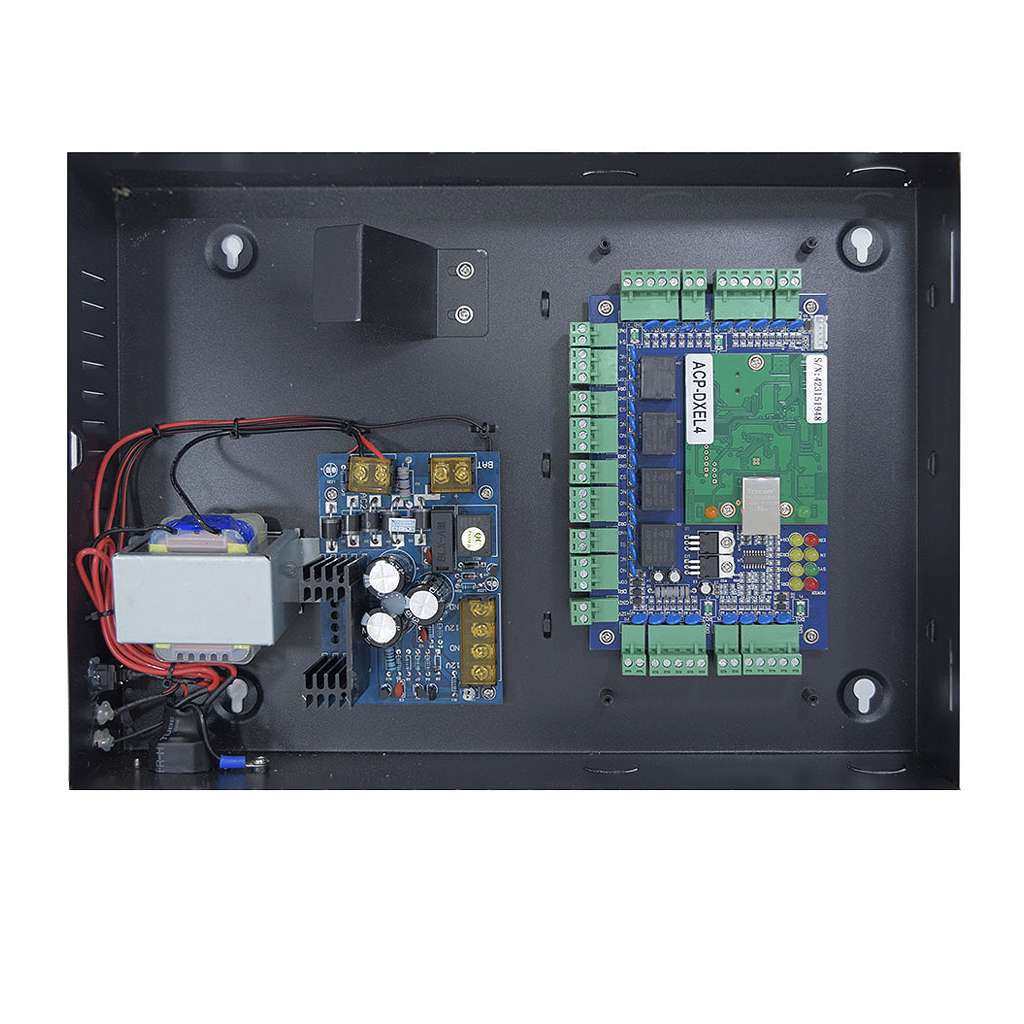

DX Series Four Door TCP/IP Web Server Controller – (ACP-DXEL4)

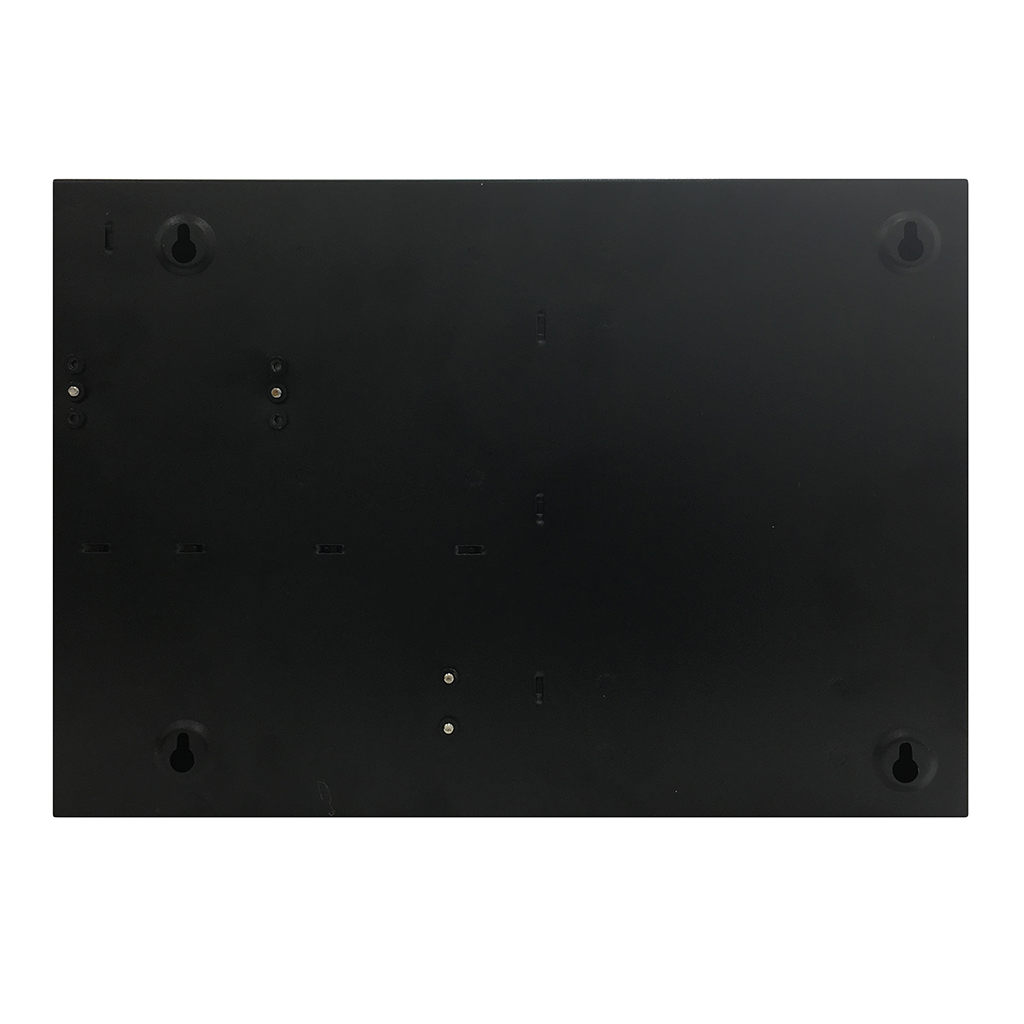

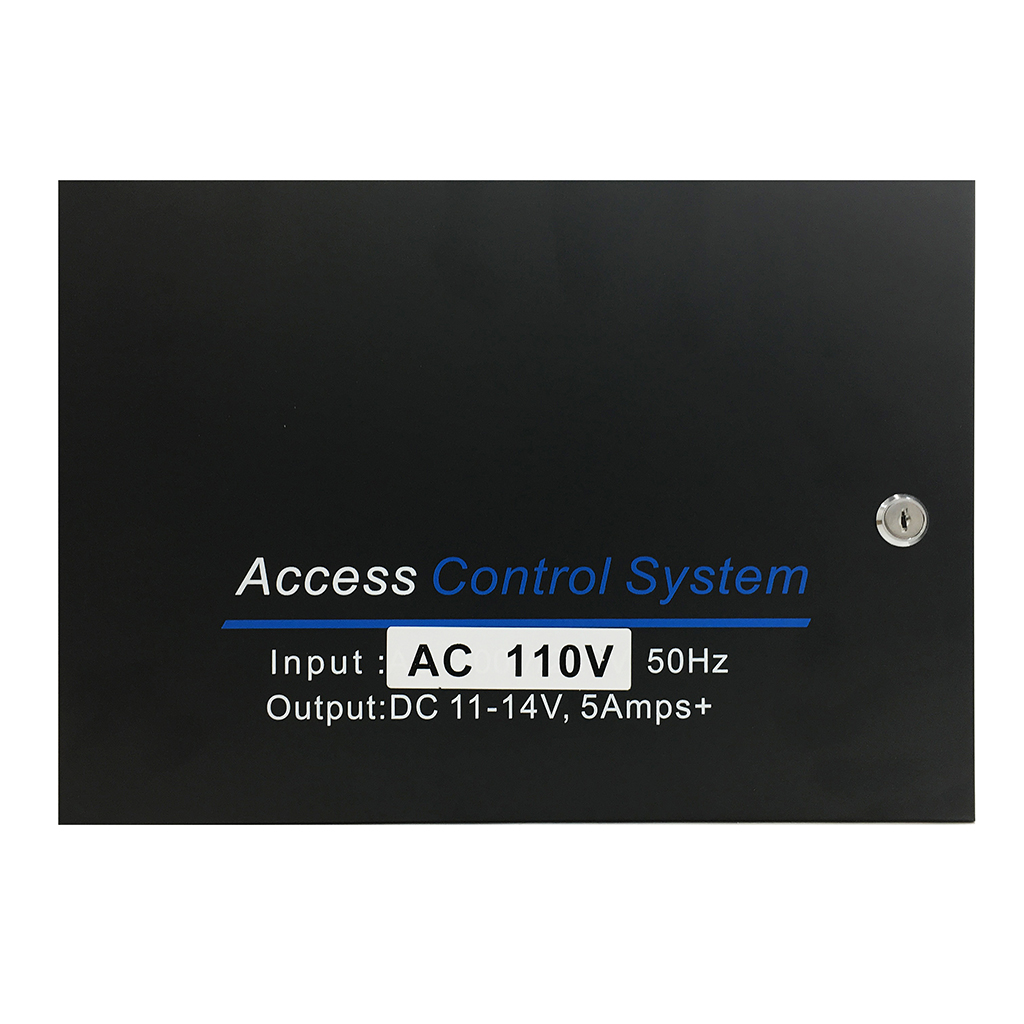

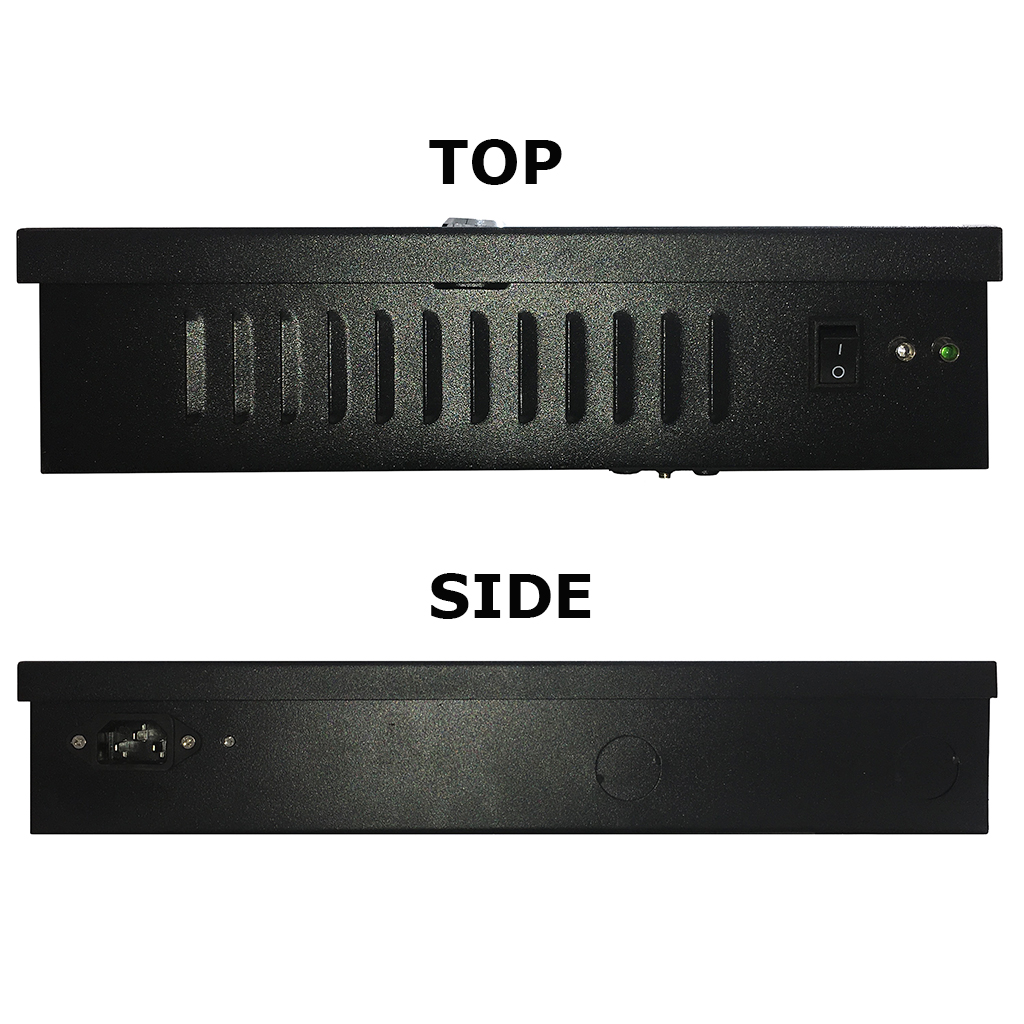

DX Series Control Board Power Supply Box 12V 5A – (ACPWR-DXCASE12V5A)

Optional Accessories

An optional backup battery is highly recommended in case of a power outage

Battery Backup – (ACPWR-BBU 1-7)

Full Line of Access Control Access Control Proximity Card Readers and Electronic Door Locks and more!

Model ACP-DXEL4-Pack
Unit Size 218mm x 106mm
Unit Packing Way Brown Box
Unit Packing Size 24 x 13.5 x 137.5 px
Accessories User Manual, warranty card
Conventional Function Off-line operation; Real time supervision; Photo display; Mass storage; Flexible user privilege setup; Remote unlocking; Multi-user supervision; Quick setting; Convenient checking and query; Revisable and printable report form; Report form; Report can be exported to excel file; Card+password unlocking; Alarm for long time enclosing;alarm for invalid card swiping; First card unlocking;alarm for illegal break in; Unlocking at definite time; E-map etc.
Professional Function For professional users such as banks, cash houses, telecom stations, power supply stations, prisons and police stations: Interface locking; Intimidation alarm; Integrated fire control; Anti-pass-back and anti-tail; Interlocking; Multi-card unlocking; Emergency double locking; In door population checking; Unlocking based on internal and external validation.
All-in-one-card Management System Normal shift and multi-shifts time attendance management system; Fixed ration dining management system; Meeting attendance management system; Online patrol management system and security alarm management system.
Communication TCP/IP 10M/100M adaptive
English Software Supportable Database Access and SQL
Description Control 4 doors, get in the door by swiping card, and get out door by button
Power Supply 12VDC 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 4pcs
Door Controlled 4
Door Opening Time Extending Setting 1-600 seconds (adjustable)
Max Quantity of Controller No limit
Remark N denotes quantity of computer serial port or quantity of 485hub port, support 256pcs ports
Operation Temperature -40°C ~ 70°C
Operation Humidity 10-90 % RH , No Condensation
Quantity of Users 20,000 Users
Quantity of Event Buffers (off-line) 100,000 event buffers
Power Interruption Protection Measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100m (suggestion distance 80m)
Max Distance Between Controllers RS232: Communication Distance less than 13m, suggestion distance is 3m or less

RS485: bus line max length 1200m, suggestion length 1000m or less, if expansion device added, the distance could be 3000m

TCP/IP: Depends on net coverage area

Collocations PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for Long Time Door Open, Legal Break In, Intimidate Yes
Compulsive Open and Close Door at Long Time Yes
Open Door in Remote Distance Yes
Inter Block Yes
Anti Pass Back and Tail Yes
Multi-card Open Door Yes
Open Long Time at Specified Time Yes
Electronic Map Yes
Urgency Locking Yes
First Card Unlocking Yes
Unlock Based on Internal and External Validation Yes
Keypad (card+password, supper password) Yes
Remote Administration No
