Tutorial for Enabling HDMI 2 on an ELITE 4K NVR CCTV System

The purpose of this article is to provide a tutorial showing how to enable HDMI 2 on an ELITE 4K NVR CCTV system. You can find ELITE network video recorders, security cameras, and other products in the ELITE series anytime on our website. We carry an extensive collection of a variety of different surveillance equipment in our store in addition to the ELITE 4K NVR CCTV system and offer our CCTV products at wholesale prices. Be sure to visit our website regularly to find new and updated featured promotions that provide increasingly impressive deals. To access our website, just click the following link provided here: Security Camera King.

NVR CCTV System | Tutorial

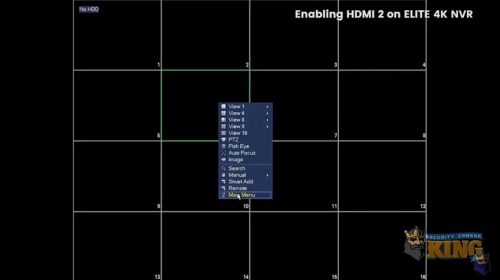

Let’s get started with the tutorial for enabling HDMI 2 on an ELITE or S1 4K Series NVR CCTV system. The first step is to right-click and go to the Main Menu. Next, click on System in the right-hand corner.



Once you are in System, you should be within the General category. In the General category, remain in the first General tab. The second from the bottom will be a selection for Navigation Bar. Click to enable that. Then press Apply in the bottom right-hand corner.


Once you hit Apply, go back into System. Click the Display category, found in the side menu. There you will see Screen Enable HDMI 2 with a box to select towards the bottom. Click on the box to enable it. Then once again select Apply in the bottom right-hand corner.

After you hit Apply, right-click to exit the Main Menu. Next, go to the bottom of your screen and left-click. At this point, your navigation should appear at the bottom.

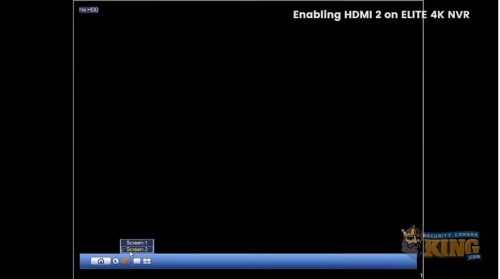

Within the navigation bar, you will see a Home button option in the bottom-left corner. Next to that will be an arrow. Clicking the box next to that will provide you with the option for Screen 1 and Screen 2.NVR CCTV System

Selecting Screen 2 will reveal two options next to it. Here you will see the HDMI and HDMI 2 selections. You can either do a 1 screen display or a 4 screen display on HDMI 2. This is where you would make those choices.


And that concludes the tutorial for enabling HDMI 2 on an ELITE 4K NVR CCTV system. I hope this was helpful and answered any of the questions you had. If you would like more information about the ELITE or S1 4K Series NVR CCTV system or wish to view any of our CCTV security cameras, surveillance equipment, or other related ELITE Series products, visit our website.
